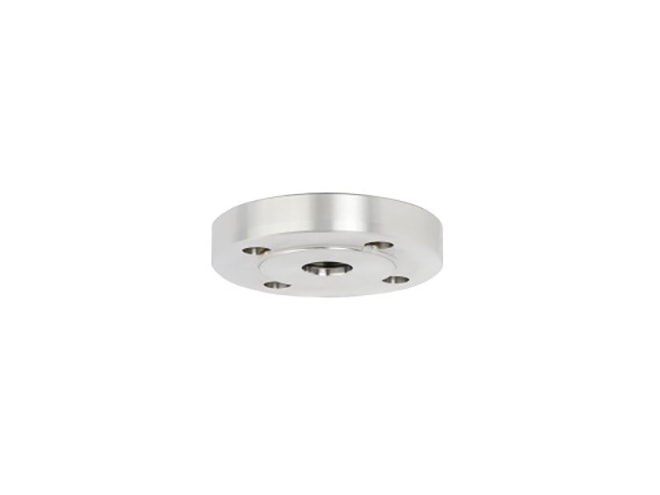

Wika 990.26 Diaphragm Seal

Flange with internal, all welded diaphragm.

Starting at $956.29

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability

Features

  • Works with aggressive, highly viscous, crystallizing or hot media
  • Pressure range: From 400 mbar [5,8 psi] depending on diameter of diaphragm
  • Oil and grease free per ASTM G93-03 level F and ISO 15001 (< 1,000 mg/m²) standard
  • Compact design

The Wika 990.26 Diaphragm Seal is ideally suited for applications with small process connections. Due to the internal diaphragm low measuring ranges can be realised. The large diameter of the diaphragm effects a lower deviation at the measuring instrument when the temperature changes.
Mounting of the diaphragm seal to the measuring instrument may be made via a direct connection, for high temperatures via a cooling element or via a flexible capillary.
For the material selection WIKA offers a variety of solutions, in which the upper body of the diaphragm seal and the wetted parts can be made of identical or different materials. The wetted parts can, as an alternative, be coated.
