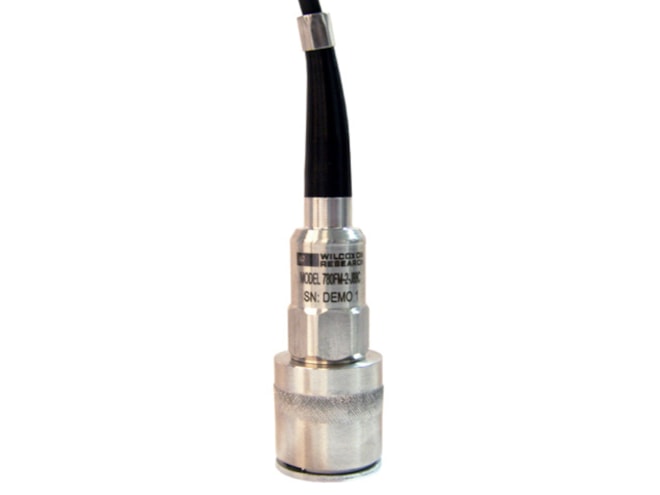

Wilcoxon Sensing Technologies 780FM-2-J88C Integral Cable Accelerometer

Compact integral cable accelerometer for walkaround monitoring, 100mV/g sensitivity, ±15% sensitivity tolerance.

$381.54

View Company Reviews
Part Number
  • 780FM-2-J88C
Manufactured
Includes
Availability
  • Usually ships in 5-7 business days
Product Specs

Features

  • Dynamic vibration (IEPE) sensor output
  • 100mV/g sensitivity
  • ±15% sensitivity tolerance
  • 0.4 to 12,000Hz frequency response
  • J88C integral cable
  • PZT, shear sensing element design
  • BNC connector
  • 80g peak FS acceleration range
  • 30kHz resonance frequency
  • 316L stainless steel construction
  • Two-pole 40 lbf magnet included

The Wilcoxon Sensing Technologies 780FM-2-J88C integral cable accelerometer is designed for walkaround monitoring programs. It features a magnetic mounting base and a top exit, 6-foot coiled integral cable with BNC connector for use with portable vibration data collectors.

The 780FM-2-J88C is designed for long-term, reliable use, constructed with 316L stainless steel, and is hermetically sealed and corrosion resistant. It features a 1/4-28 UNF tapped hole and a two-pole 40 lbf magnet for mounting (included), and has a BNC connector. The 780FM-2-J88C is case isolated, and has 100mV/g sensitivity and ±15% sensitivity tolerance.

The 780FM-2-J88C is manufactured in an ISO 9001 facility.
