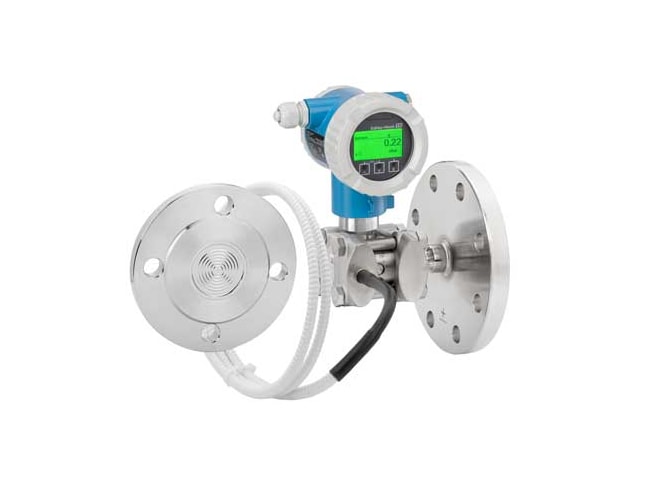

E+H Deltabar PMD78B Differential Pressure Transmitter

Name: E+H Deltabar PMD78B Differential Pressure Transmitter
Price: 4107.18 USD
Availability: InStock

Minimizes ambient and process temperature effects on your measurement thanks to the TempC membrane.

Starting at $4,107.18

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Pressure measuring ranges up to 40 bar (600 psi)
Process temperatures up to 400 °C (752 °F) with diaphragm seal
Static pressure: up to 160 bar (2400 psi)
Accuracy: up to +/- 0.075%

The E+H Deltabar PMD78B Differential Pressure Transmitter introduces a robust pressure transmitter that combines numerous benefits: Easy local or remote operation, allows condition-based maintenance and offers smart safety in processes. The firmware is designed to ensure easy handling. Intuitive and clear wizard navigation guides the user through the commissioning and verification of the device. The Bluetooth connectivity provides safe and remote operation. The large display with backlight guarantees excellent readability. The Heartbeat Technology software package offers an on demand verification and monitoring function to detect undesired anomalies. These undesired anomalies include dynamic pressure shocks or changes in the supply voltage, for example. Capillary tubes attenuate the pressure shocks.

Spec Sheets

E+H Deltabar PMD78B Differential Pressure Transmitter Datasheet (2.5 MB)

Manuals

E+H Deltabar PMD78B Differential Pressure Transmitter Operating Instructions (1.9 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
PMD78B-AABAEJHB7HACHBRAAADJAA0G2G Show Configuration	$4,182.91	19 in stock
PMD78B-CABAFJHB7HJDHAJAAADJAA0G2B Show Configuration	$4,449.35	1 in stock
PMD78B-CCBAFJHB7FECHAJAAAGJAA0F2DI7 Show Configuration	$4,727.18	1 in stock

Base Price:: $3,622.52
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display; Operation: Graphic display with touch control (+$208.86)
Housing; Material: Dual compartment; Alu, coated (+$142.67)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Application: Diaphragm seal one side
Sensor Range: 3bar/300kPa/45psi
Calibration; Unit: Sensor range; %
Design HP Side: Transmitter horiz.; temp.isolator short
HP Side Capillary Length: Only available with custom length selected
Design LP Side: Blind flange with vent filter, 316L, for gauge pressure
LP Side Capillary Length: Only available with custom length option selected
Process Connection, Sealing Surface: Flange ASME B16.5, RF
Process Connection HP Side: NPS 2" Cl.150, 316/316L (+$208.86)
Process Connection LP Side: Not included
Membrane Material; Application: 316L, TempC; diaphragm seal
Fill Fluid: Silicone oil, FDA
Seal LP Side: EPDM
Operation Language Display: None
Membrane Coating: Not included
Application Package: Not included
Calibration: Not included
Service: Not included
Test, Certificate, Declaration: Not included
Additional Approval: Not included
Sensor Design: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Regional Device Adaption: Not included
Firmware Version: Not included
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $3,622.52
Approval: CSA C/US General Purpose
Output: 2-wire 4-20mA HART
Display; Operation: Graphic display with touch control + Bluetooth (+$268.55)
Housing; Material: Dual compartment; Alu, coated (+$142.67)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Application: Diaphragm seal one side
Sensor Range: 3bar/300kPa/45psi
Calibration; Unit: Customized linear; see additional spec. (+$73.62)
Design HP Side: Transmitter vertical; temp. isolator short
HP Side Capillary Length: Only available with custom length selected
Design LP Side: NPT1/4-18 IEC61518 UNF7/16-20, 316L (+$109.65)
LP Side Capillary Length: Only available with custom length option selected
Process Connection, Sealing Surface: Flange ASME B16.5, RF
Process Connection HP Side: NPS 2" Cl.150, 316/316L (+$208.86)
Process Connection LP Side: Not included
Membrane Material; Application: 316L, TempC; diaphragm seal
Fill Fluid: Silicone oil, FDA
Seal LP Side: PTFE (+$23.48)
Operation Language Display: None
Membrane Coating: Not included
Application Package: Not included
Calibration: Not included
Service: Not included
Test, Certificate, Declaration: Not included
Additional Approval: Not included
Sensor Design: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Regional Device Adaption: Not included
Firmware Version: Not included
Marking: Without
Tagging: Without

Reconfigure

Base Price:: $3,622.52
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D (+$40.72)
Output: 2-wire 4-20mA HART
Display; Operation: Graphic display with touch control + Bluetooth (+$268.55)
Housing; Material: Dual compartment; Alu, coated (+$142.67)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Application: Diaphragm seal one side
Sensor Range: 500mbar/50kPa/7.5psi
Calibration; Unit: Sensor range; inH2O/ftH2O
Design HP Side: Transmitter horiz.; temp.isolator short
HP Side Capillary Length: Only available with custom length selected
Design LP Side: NPT1/4-18 IEC61518 UNF7/16-20, 316L (+$109.65)
LP Side Capillary Length: Only available with custom length option selected
Process Connection, Sealing Surface: Flange ASME B16.5, RF
Process Connection HP Side: NPS 4" Cl.150, 316/316L (+$493.13)
Process Connection LP Side: Not included
Membrane Material; Application: 316L; diaphragm seal
Fill Fluid: Silicone oil, FDA
Seal LP Side: FKM
Operation Language Display: None
Membrane Coating: Not included
Application Package: Not included
Calibration: Not included
Service: Product documentation on paper (+$49.94)
Test, Certificate, Declaration: Not included
Additional Approval: Not included
Sensor Design: Not included
Accessory Mounted: Not included
Accessory Enclosed: Not included
Regional Device Adaption: Not included
Firmware Version: Not included
Marking: Without
Tagging: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMD78B-CABACJHB7HJRHAJAAADJAA0H2BEHF1JAK	Call for information	1	Call to order
PMD78B-CDBAFJHC7LJRHCRAAAFJAFJG2AEHQ1 15	Call for information	2	Call to order
PMD78B-AABAEJHC7DJAHCRAAADJADJG2A 18.00f	Call for information	1	Call to order
PMD78B-AABAEJHC7DJDHCMAAADJADJG2AI9 3.00	Call for information	1	Call to order
PMD78B-CGBADJHC7MJRHCRAAAFJAFJG2A 6.00ft	Call for information	6	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-9 weeks". Click here to select options
