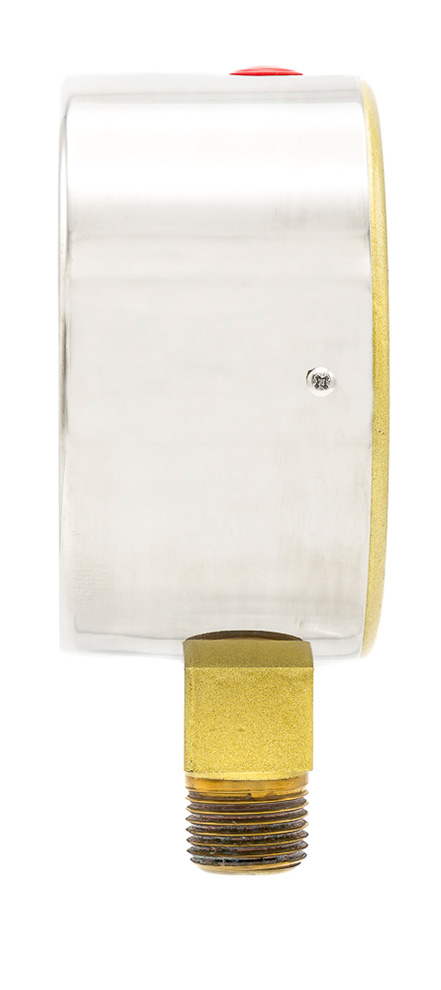

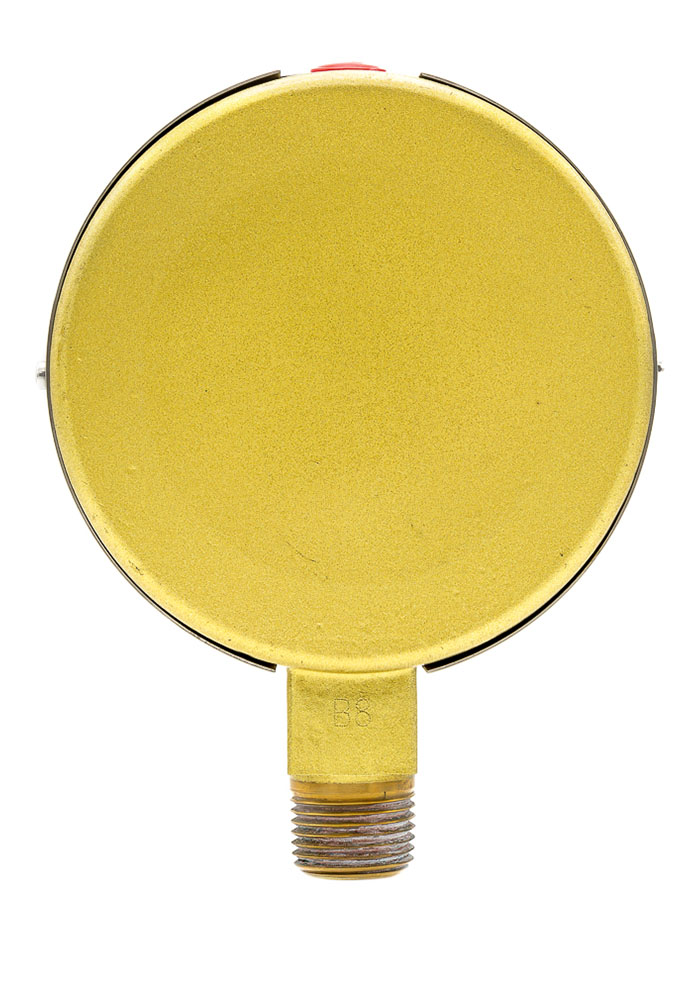

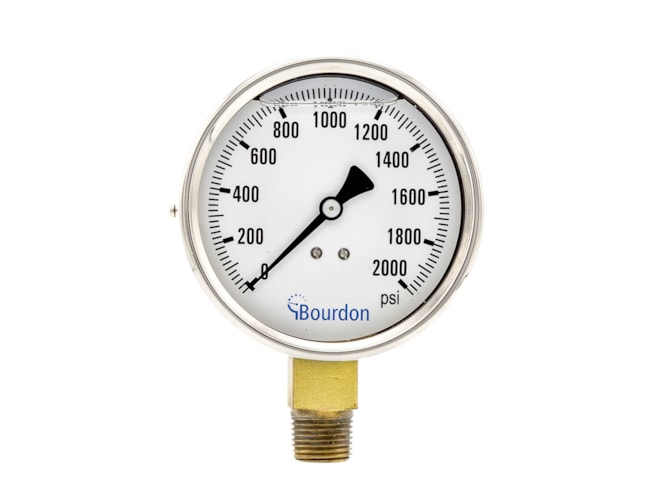

Bourdon MAG Series Pressure Gauge

Liquid-filled industrial gauge measuring vacuum and compound pressure up to 15,000psi.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Size:
    • 2.5in (63mm)
    • 4in (100mm)
  • Accuracy:
    • 2.5in: ± 2/1/2% of span
    • 4in: ± 1% of span
  • Forged one piece case and socket
  • Powder coated case
  • Gold plated or stainless steel cover ring (depending on size selected)
  • Aluminum black pointer
  • IP 66 (EN 60529) protection rating

The Bourdon MAG Series pressure gauge is an analog, liquid-filled gauge measuring pressures up to 15,000psi. The liquid fill and restrictor come standard for vibration and pressure pulsation, with liquid fill options of low viscosity glycerin/water, high viscosity glycerin, or silicone oil.

The MAG Series features a one piece, forged brass case and socket, and has copper alloy process connection, bourdon tube, and restrictor. The 2.5in (63mm) gauge size has a gold plated ABS cover ring and a standard accuracy of ± 2/1/2% of span, while the 4in (100mm) size has a polished stainless steel cover ring and a standard accuracy of ± 1% of span. Available process connections include 1/4 or 1/2in NPT.

Applications

  • Hydraulic pump systems
  • Compressors
  • Oil tank batteries
  • Oil field pumpjacks
  • Fire trucks
  • Mobile hydraulics
