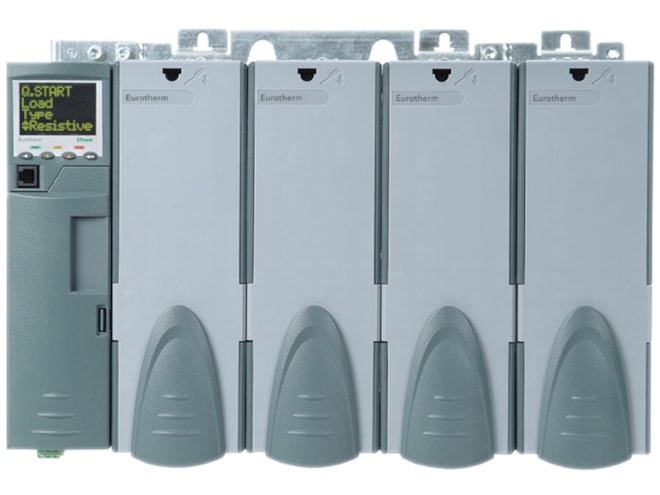

Eurotherm EPower SCR Power Controller

Modular design power controller with 1, 2, 3, and 4-phase control and up to 630A max current.

Starting at $2,397.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • 630A max current
  • 690V max voltage
  • Communication options:
    • RS485 Modbus RTU
    • Profibus
    • DeviceNet
    • Modbus TCP network protocols
    • CCLink
    • EtherNet IP
    • ProfiNet
  • Cooling:
    • Passive - 50 to 630 amps
  • Optional quick start configuration for easy setup
  • Advanced Configuration using Graphical Wiring Editor
  • Predictive load management option
  • Eurotherm iTools software included

The Eurotherm EPower SCR power controller is a modular, multi-channel SCR (Silicon Controlled Rectifier) power controller unit that supports current ratings from 50A up to 630A.

The single-driver module has the ability to support up to four independent control loops. It offers a wide choice of options boards with the support of 7 fieldbus protocols over Ethernet and serial industrial communications, flexible I/O, and Predictive Load Management (PLM).

The Eurotherm iTools configuration software is used for the commissioning and advanced programming of the EPower controller.

Applications:

  • Glass furnaces
  • Melt heat treatment
  • Food processing
  • Multi-channel heaters
  • High temperature furnaces
  • Induction heating
  • Plastics – Vacuum furnace
