Wilcoxon Sensing Technologies REF2510R ReferenceMate Monitoring Kit

Portable reference source industrial monitoring kit to verify sensor and cabling performance.

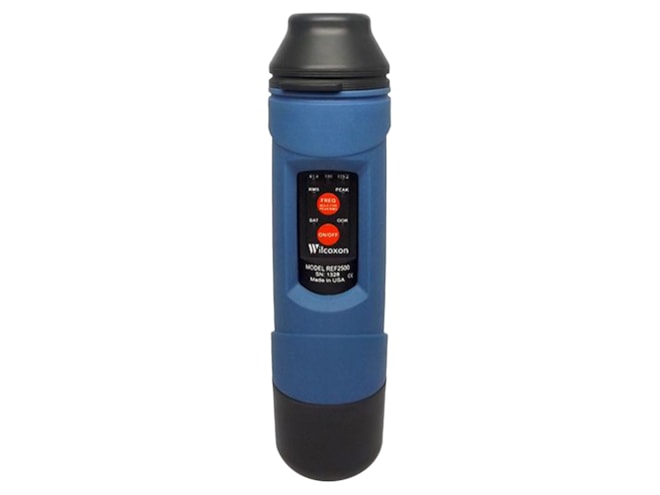

Wilcoxon REF2500 ReferenceMate Portable Reference Source
Wilcoxon Sensing Technologies REF2510R ReferenceMate Monitoring Kit

$5,469.23 $4,922.31

Effective April 21st, 2025, Wilcoxon Sensing Technologies has added a 1.5% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

REF2510R

Manufactured

By Wilcoxon Sensing Technologies

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

1 in stock

Product Manual Product Specs

Features

Operating frequencies (user selectable):
- 61.4Hz
- 100.0Hz
- 159.2Hz
1.0g (9.81m/s2) acceleration output
6061 aluminum case
1/4-28 female mounting thread
0 to 8.8oz (250 grams) load range
≤3sec ramp up time
Thermoplastic rubber protective boot
IP54 protection rated

What's in the Box

Handheld REF2500 shaker with protective boot
4x AA batteries
Calibration sheet
Belt clip
Wrench
Carrying case with foam insert
1/4-28 to 1/4-28 SF6 mounting stud

The Wilcoxon Sensing Technologies REF2510R ReferenceMate monitoring kit enables users to verify sensor performance and the integrity of the cabling between the sensor and the online system easily and efficiently. The built-in reference accelerometer assures that a 1g test level is maintained for sensors weighing up to 250 grams. Frequency of operation (61.4Hz, 100Hz, and 159.2Hz) and measurement type (peak/RMS) are user selectable with the push button interface. All selections retained after powering off the unit. Crossover frequencies allow for easy velocity verification. LEDs notify the user when battery condition falls below operational levels or if the unit is overloaded. For calibration verification, reference test points are provided to verify the output of the internal sensor.

Frequency of operation and measurement types:

61.4Hz: for imperial measurements, where 1g is equal to 1in per second (ips), ideal for use with velocity sensors
100Hz: to confirm accelerometer performance at the same reference frequency used by most manufacturers
159.2Hz: for metric measurements, where 1g is equal to 9.81m/sec2 and 9.81mm/sec

The REF2510R is manufactured in an approved ISO 9001 facility.

Spec Sheets

Wilcoxon Sensing Technologies REF2510R Monitoring Kit Datasheet (464 KB)

Manuals

Wilcoxon Sensing Technologies REF2500 ReferenceMate Portable Reference Source Manual (743 KB)
