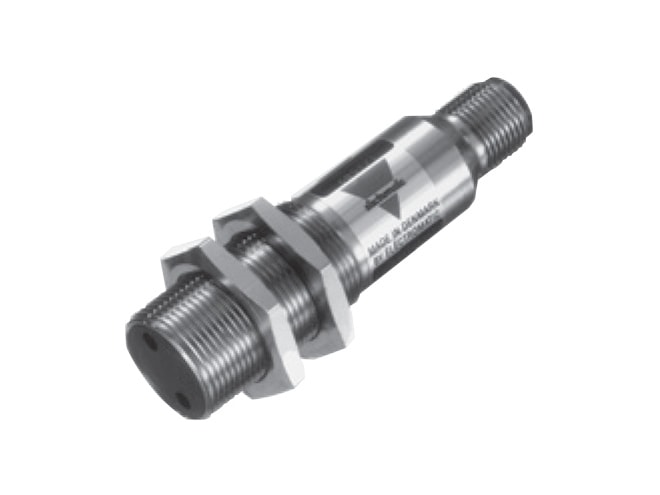

Carlo Gavazzi Type ER1830.PAS Photoelectric Switch
Retro-reflective switch with extended range up to 3m and adjustable sensitivity with 270° potentiometer.
$178.00
Effective October 1st, 2025 Carlo Gavazzi has added a unique fee for each product. The surcharge will appear as a separate line item on each sales order. Please contact Instrumart for details.
Effective October 1st, 2025 Carlo Gavazzi has added a unique fee for each product. The surcharge will appear as a separate line item on each sales order. Please contact Instrumart for details.
Part Number
- ER1830PPAS-1
Manufactured
Includes
Availability
Overview
Features
- 10 to 40VDC rated operational voltage, ripple included
- ≤3.2ms OFF-ON response time
- ≤5ms ON-OFF response time
- M18 metal housing
- 3% to 20% hysteresis (differential travel)
- 200mA PNP output
- 100ms typical power ON delay
- Plug connection
What's in the Box
- ER1830 Photoelectric Switch
- 2 nuts
Description
The Carlo Gavazzi Type ER1830.PAS Photoelectric Switch applies an LED-indicated make and break switching function. The switch is equipped with short M18 metal housing for withstanding rugged applications, and is protected from reverse polarity, short circuit overload, and transients.
