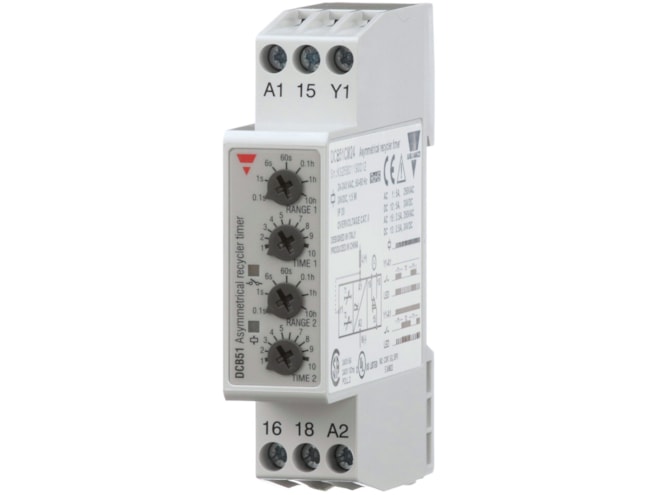

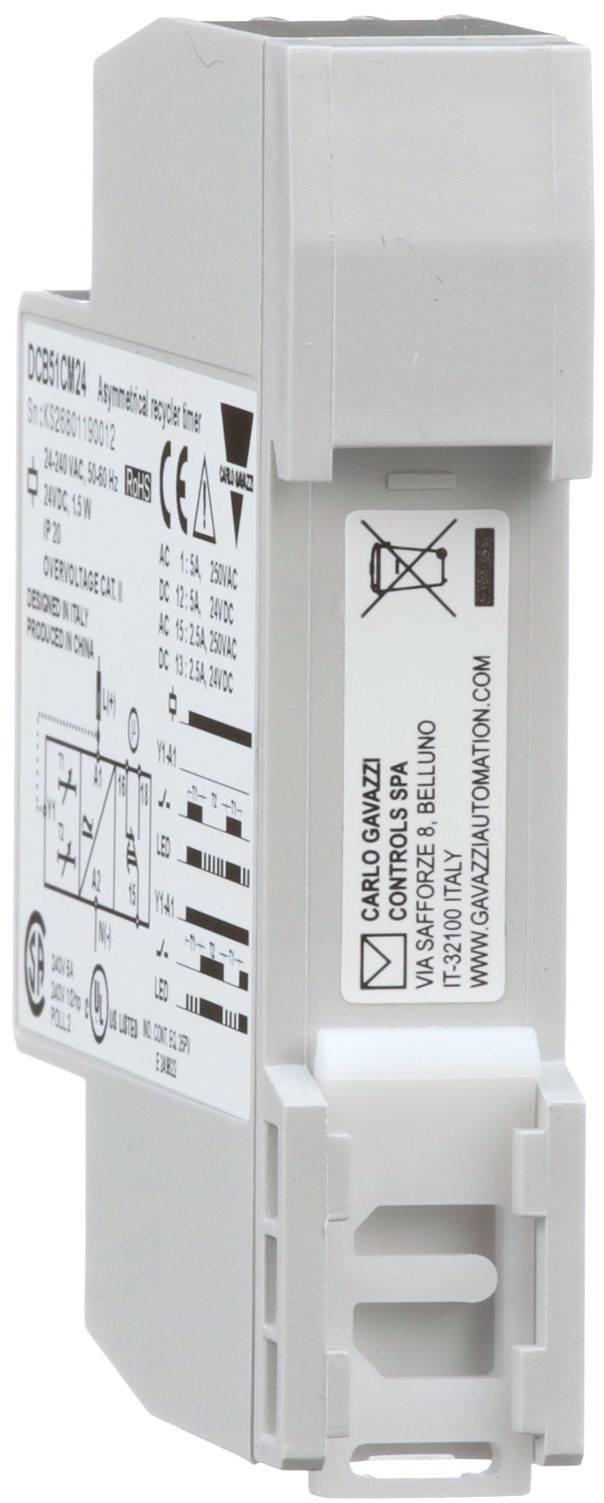

Carlo Gavazzi Type DCB51 Asymmetrical Recycler Timer

Combined function timer with selectable ON or OFF asymmetrical recycler for mounting on DIN rail.

$98.00
Minimum Order Quantity of 5 Items.
Effective October 1st, 2025 Carlo Gavazzi has added a unique fee for each product. The surcharge will appear as a separate line item on each sales order. Please contact Instrumart for details.

View Company Reviews
Part Number
  • DCB51CM24
Manufactured
Includes
Availability
  • Usually ships in 8-10 weeks
Product Specs

Features

  • 0.1s to 100h time range
  • 1 x SPDT relay output
  • Selection of time range by front knobs
  • Automatic start
  • 17.5mm DIN-rail housing
  • Combined AC and DC power supply voltage
  • LED indication for relay status and power supply ON

The Carlo Gavazzi Type DCB51 Asymmetrical Recycler Timer provides two selectable functions: asymmetrical recycler ON first, and asymmetrical recycler OFF first. Time range and settings between the ON and OFF times are knob adjustable, and the alternating sequence continues until the power supply is interrupted for at least 200ms.

Adjustable time ranges are:

  • 0.1s to 1s
  • 1s to 10s
  • 6s to 60s
  • 60s to 600s
  • 0.1h to 1h
  • 1h to 10h
  • 10h to 100h
