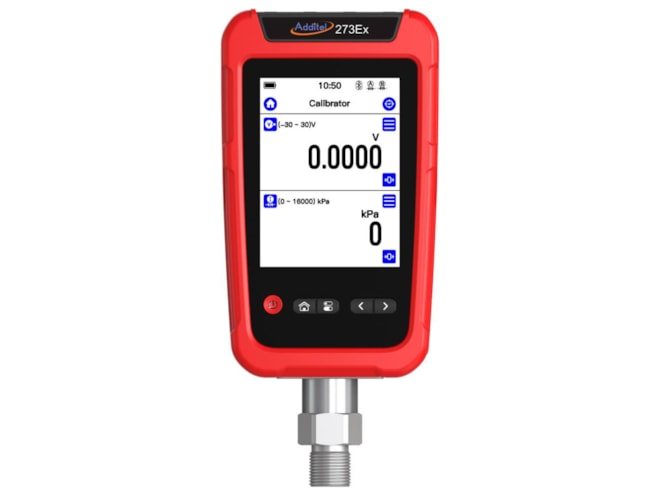

Additel ADT273Ex Handheld Pressure Calibrator

Intrinsically safe multifunctional pressure calibrator with built-in atmospheric pressure sensor.

Starting at $4,679.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks. Call for expedite options
Product Specs

Features

  • 0.02% and 0.05% FS accuracy (depending on pressure range)
  • Pressure ranges available:
    • Gauge pressures up to 60,000 psi (4,200 bar)
    • Compound pressures up to 10,000 psi (700 bar)
  • Multiple pressure port types available
  • Color touchscreen display
  • Built-in barometer
  • Bluetooth and USB communication
  • Optional HART communication
  • ISO 17025 accredited calibration certificate with data
  • Communicates with Additel's Link mobile app

The Additel ADT273Ex handheld pressure calibrator is an intrinsically safe multifunction pressure calibrator with built-in quick test tasks and optional HART communications capability. The ADT273Ex has a built-in atmospheric pressure sensor, so that absolute pressure and the gauge pressure are easily facilitated. With three pressure module inputs, one switchable at the bottom and two digital inputs on the side, the user can configure the setup accordingly and easily meet the needs of pressure calibration and testing in virtually any environment.

The ADT273Ex has passed ATEX, IECEX, CSA, and UKCA intrinsic safety certifications from authoritative organizations and the explosion-proof level is Ex ia IIC T4 Ga. This means that the ADT273Ex can be used in potentially explosive gas environments, such as oil and gas platforms, refineries, chemical and petrochemical plants, pharmaceutical industry, energy and gas processing industry.

Plug-In Modules

Additel ADT158Ex Pressure Module
Additel ADT158Ex Pressure Module

Intrinsically safe digital pressure modules for pressure ranges to 60,000 psi (4,200 bar).

Starting at $1,502.00
Additel ADT 161 Intelligent Digital Pressure Module
Additel ADT 161 Intelligent Digital Pressure Module

Intrinsically safe pressure sensors for ranges up to 60,000psi or 4,200bar with fully temperature compensated accuracy.

Starting at $3,531.00

Cases

Additel 9918-SC Carrying Case
Additel 9918-SC Carrying Case

Soft carrying case for the Additel ADT273Ex handheld pressure calibrator.

$228.00

Accessories

Please consider these optional accessories.

Additel 9060 Pressure Module Connection Cable
Additel 9060 Pressure Module Connection Cable

$111.00
