Select options for pricing
  • Call for availability



  • Available in 8, 16 and 24 channel versions
  • Internally generated 24VDC signal supply
  • Integrated power supply options:
    • AC: 85-264VAC (88-300VDC)
    • DC: 24VDC Nominal (19-72VDC)
  • Optional auxiliary power supply available
  • Optional RS485 Modbus RTU serial comms
  • IP40 or IP54 protection

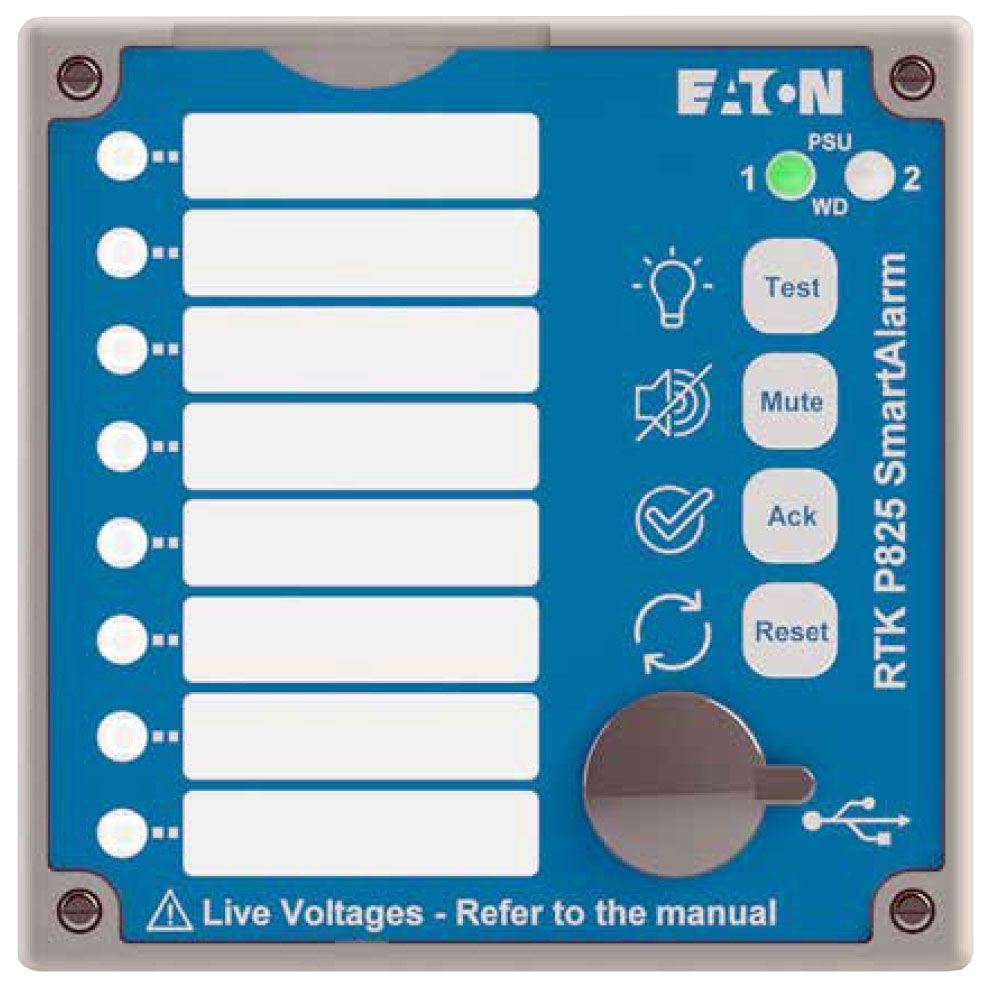

The MTL RTK P825 SmartAlarm Annunciator is designed as a complete alarm system with integral, audible, relays and pushbuttons to provide a cost effective solution for monitoring critical process alarms. The front panel mounted USB mini connector allows for easy connection to the user's laptop or PC and simplifies the programming of the built-in ISA 18-1 1979 (R1992) alarm sequences.

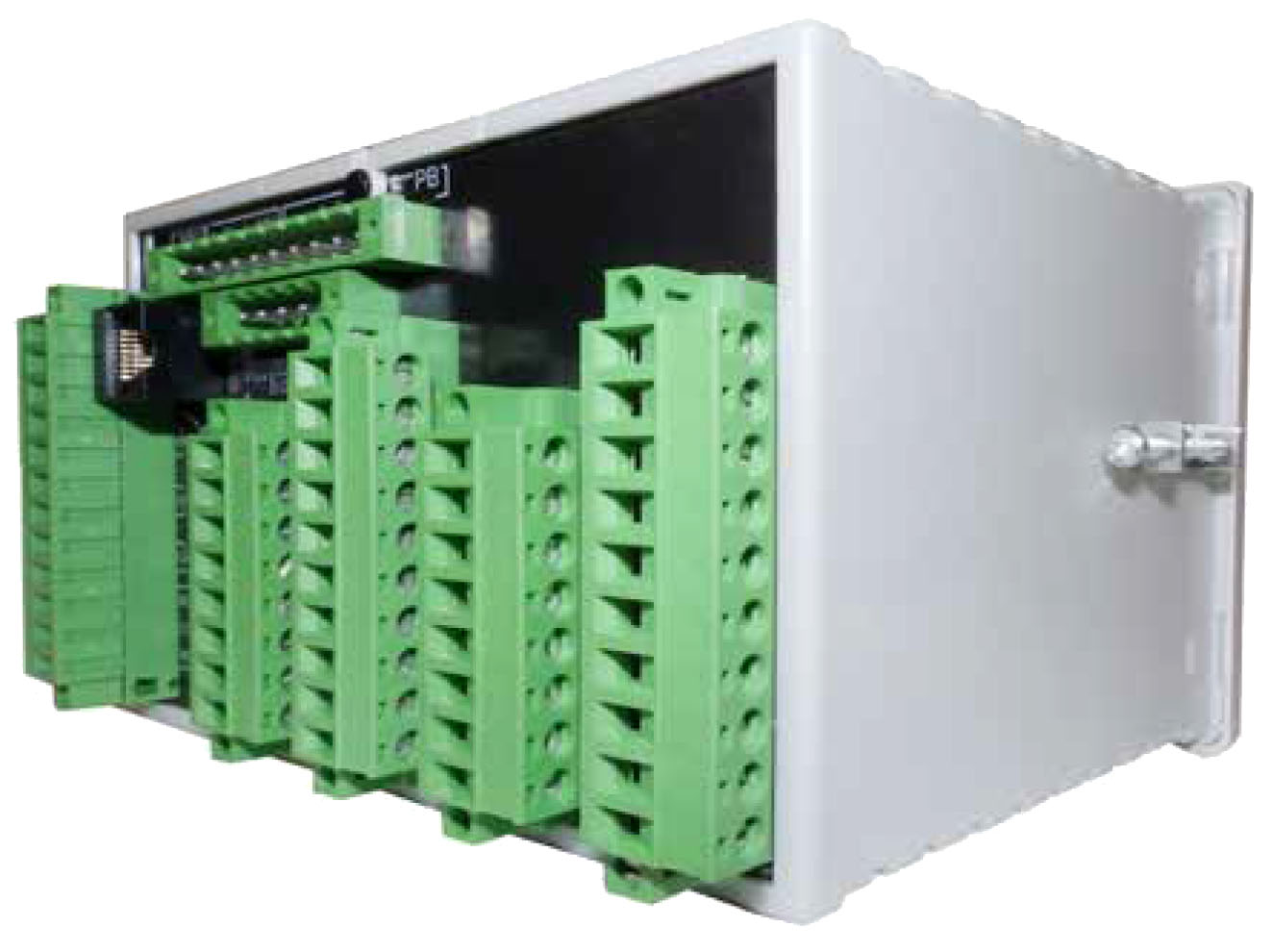

The P825 provides dual horn relays, LED display, optional signal duplicating relays and/or dual fully-featured and compact annunciator redundant power supplies, making the P825 an ideal choice where full functionality is required and space is at a premium. The P825's modular design allows units to be assembled in three standard sizes: 8 ,16, and 24 channels. All sizes are housed in DIN standard enclosures.

All inputs are opto-coupled and comply to the stringent requirements of the European Directive in Electromagnetic Compatibility and the Low Voltage Directive. This greatly reduces the possibility of false alarms.
