• PMD8RI
  • Call for availability



  • 1/2in NPT cable gland
  • 800mm rated operating distance
  • Make or break switching function
  • Multi supply voltage:
    • 12 to 240 VDC
    • 24 to 240 VAC, 50/60 Hz
  • 20Hz operating frequency
  • Modulated infrared light sensing technology (880nm)
  • IP67 polycarbonate housing

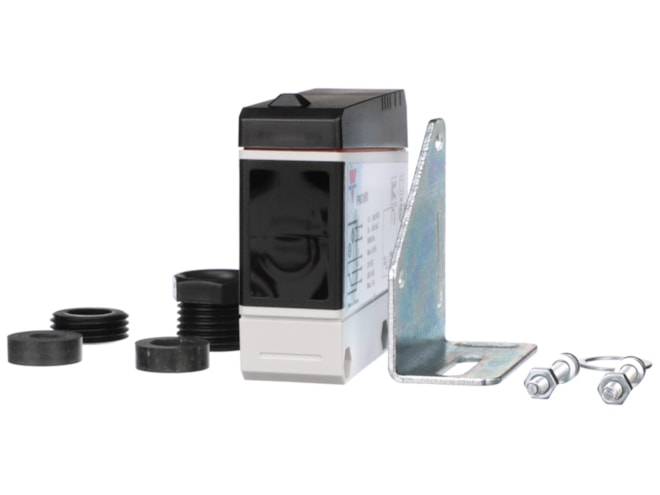

The Carlo Gavazzi PMD8RI photoelectric switch is a diffuse-reflective photoelectric switch with adjustable sensitivity and sensing range up to 800mm. The PMD8RI has switch selectable make or break switching function. The modulated infrared light is immune to the effects of ambient light, making for a reliable switch. These sensors are frequently used in packaging machinery, automatic door systems, factory automation, and car washes.
