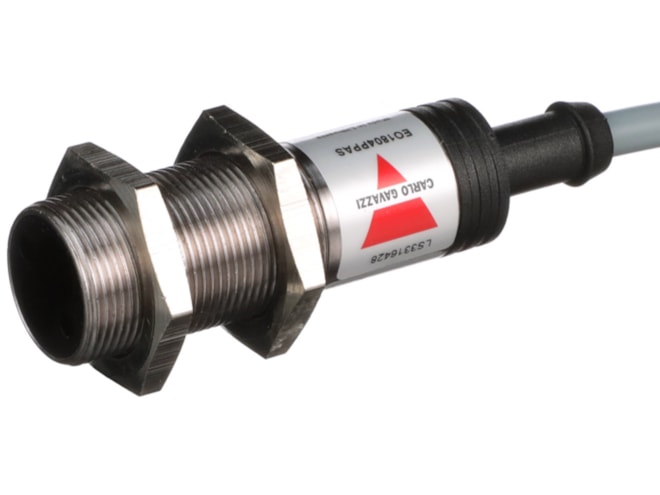

Carlo Gavazzi Type EO1804 Proximity Sensor

General purpose diffuse-reflective sensor for heavy duty applications.

Starting at $166.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 16-18 weeks
Product Specs

Features

  • 400mm adjustable range
  • Modulated infrared light sensing technology
  • 10 to 40VDC supply voltage
  • 200mA NPN or PNP output
  • Protection:
    • Reverse polarity
    • Short-circuit
    • Transients
  • Heavy duty M18 metal housing, IP67
  • Cable and plug versions

The Carlo Gavazzi Type EO1804 Proximity Sensor is a general purpose diffuse-reflective sensor in a short M18 metal housing for heavy duty applications. They are useful for simple applications where a basic sensor provides adequate sensing performance. The sensors are easy to adjust with 270° single turn potentiometer. The output is a 4-wire complementary (NO and NC) output in NPN (current sinking) or PNP (current souring).
