Optris PI 450i T010 Infrared Camera

Compact infrared camera detects the slightest temperature differences for fever screening applications.

$5,150.00

View Company Reviews
Part Number
  • OPTPI40ILTO29T010
Manufactured
Includes
Availability
  • 1 in stock
Product Family
Product Manual Product Specs

Features

  • -4 to 212°F (-20 to 100°C) temperature range
  • ±2°C accuracy
  • 29° x 22° / f = 12.7 mm lens
  • 382 x 288px optical resolution
  • 80Hz frame rate can switch to 27Hz
  • 8 to 14µm spectral range
  • Smallest camera in its class (46 x 56 x 68 – 77 mm)
  • Interchangeable lenses
  • Superb thermal sensitivity of 40 mK
  • License-free analysis software and calibration certificate included
Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

  • USB cable (1 m)
  • Table tripod
  • PIF cable, including terminal block (1 m)
  • Optris PIX Connect software package
  • Test certificate
  • Rugged outdoor transport case (IP67)
  • Certificate of calibration (reference temperature: 35 °C)

The Optris PI 450i T010 is an infrared camera optimized for fever screening. Viral epidemics like the current coronavirus / COVID-19 have created a worldwide demand for infrared cameras able to screen for a fever condition in humans. The PI 450i T010 provides fast, non-contact screening that can detect individuals with high body temperatures that may indicate a fever.

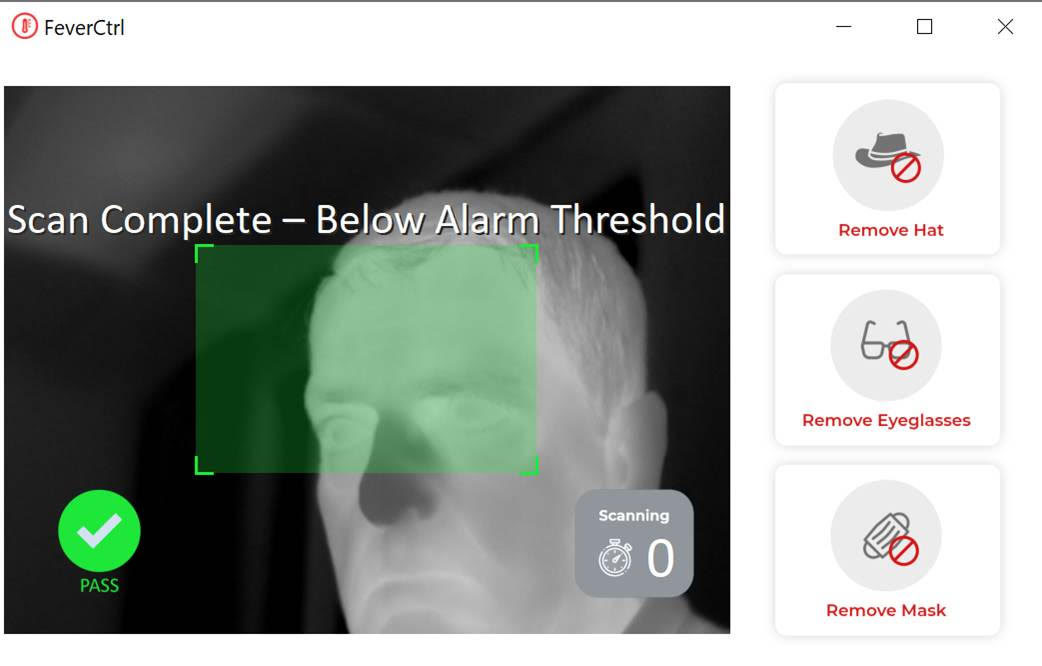

The Optris PI 450i T010 has a calibrated range of -4 to 212°F (-20 to 100°C) and is accurate to ±2°C. The temperature resolution of 0.1 °C detects the smallest of temperature variances. The system works discreetly. The software singles out the people whose skin temperature exceeds the predefined value. The visual alarm gives users the possibility to identify and isolate individuals so that a medical examination can be done discreetly. If necessary, the software offers the possibility to take automatically IR image snapshots when a person trips the alarm. The installation of the whole system including the infrared camera and its extensive software package is simple and the system can be set up or relocated quickly. The system is password-protected to prevent unauthorized changes.

Optris ACPICERT Calibration Certificate
Optris ACPICERT Calibration Certificate

Option for high temperatures up to 2192°F.

Starting at $200.00
Optris Advanced Cooling Jacket
Optris Advanced Cooling Jacket

Protection for harsh industrial environments, operates at ambient temperatures up to 599°F, available with additional mounting support.

Starting at $1,400.00
Optris Focusing Unit & Front End
Optris Focusing Unit & Front End

Required component for Optris advanced cooling jacket.

Starting at $195.00
Optris ACPIMB Mounting Base
Optris ACPIMB Mounting Base

Stainless steel mounting base adjustable in 2 axes .

$70.00
Optris ACPIPH Protective Housing
Optris ACPIPH Protective Housing

Stainless steel protective housing with mounting base.

$150.00
Optris Outdoor Protective Housing
Optris Outdoor Protective Housing

24VDC housing for camera, USB server & industrial process interface with integrated heater, protection window & air purge collar.

Starting at $1,285.00
Optris ACOPHWM Wall Mount
Optris ACOPHWM Wall Mount

For Optris outdoor protective housing .

$80.00
Optris ACCJAPIPIFMA Industrial Process Interface
Optris ACCJAPIPIFMA Industrial Process Interface

For integration into outdoor protective housing, 500 VACRMS isolation voltage between PI camera & process, 25cm connection cable.

$250.00
Optris Industrial Process Interface with Connection Box
Optris Industrial Process Interface with Connection Box

Available with 5, 10, or 20m of cable, cable glands or right angle connector & temperatures up to 482°F.

Starting at $335.00
Optris ACPIUSBSGB USB-Server Gigabit
Optris ACPIUSBSGB USB-Server Gigabit

USB-Ethernet converter for PI series infrared cameras, includes 24VDC power supply.

$580.00
Optris ACPINBPH Protective Housing
Optris ACPINBPH Protective Housing

For PI NetBox, IP 65 rated.

$325.00
Optris ACPIPOE PoE Injector
Optris ACPIPOE PoE Injector

For PI NetBox or USB-Server.

$126.00
Optris Cooling Jacket Protective Grid
Optris Cooling Jacket Protective Grid

Available in 2 & 3.15mm size, recommended component for the Optris cooling jacket, not for PI series with 48° lens.

Starting at $136.00
Optris Cooling Jacket Mounting Bracket
Optris Cooling Jacket Mounting Bracket

Available as adjustable in either one or two axes .

Starting at $185.00
Optris PI NetBox
Optris PI NetBox

Mini PC with hardware & software integrates with the PI Infrared Camera series for a stand-alone system or USB to Ethernet adapter.

$1,870.00
Optris PI Series Lens
Optris PI Series Lens

Interchangeable lenses for PI series thermal imagers in various field of view options.

Starting at $1,780.00
Optris ACCJAPWPI2XXLW Protective Window
Optris ACCJAPWPI2XXLW Protective Window

Protective window (67 x 3mm/ ZnS) for PI2xx (VIS + IR transmittive) and for PI LT, PI G7 if used together with air purge laminar .

$1,280.00
Optris BR 20AR Radiation Source
Optris BR 20AR Radiation Source

Reference radiator with high emissivity ideal for IR camera based fever screening applications.

In Stock
$585.00
Optris ACPIIAC IR App Connector
Optris ACPIIAC IR App Connector

USB 45cm cable and adapters for USB-C or Mini-USB for PI series and Xi 400 cameras.

Starting at $52.00
Optris CoolingJacket Mounting Flange
Optris CoolingJacket Mounting Flange

Fitting for connection to pipe flange, CoolingJacket and CoolingJacket Advanced.

Starting at $130.00
Optris Rugged Outdoor Case
Optris Rugged Outdoor Case

Rugged outdoor case for PI450i and PI640i model cameras with IP67 rating.

$155.00
Optris M48 Pipe Flange
Optris M48 Pipe Flange

Fitting to sighting tubes with M48x1.5 thread; for high ambient temperatures.

Starting at $105.00

This product can be used in the following applications:
