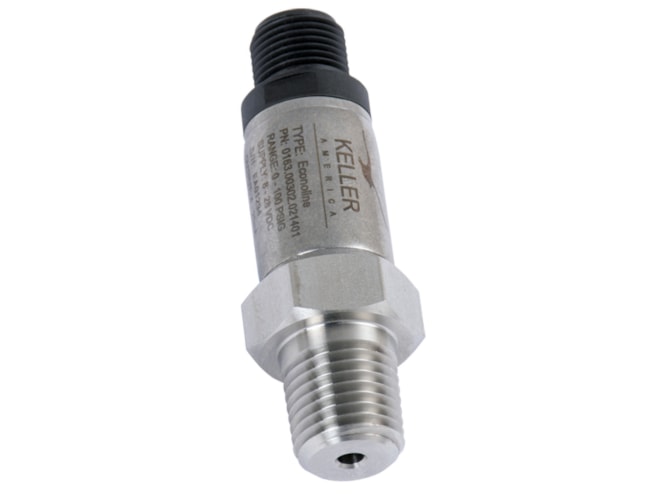

Keller Econoline General Purpose Pressure Transmitter

Up to 10,000 PSI pressure transmitter with 1/4in-18NPT male process connection and 4-20mA output.

Features

  • ±1% FS Total Error Band, compensated 0...50°C
  • ±0.25% FS Static (25°C)
  • Ranges available from 0 to 30 up to 10,000 PSI
  • 316L SS wetted materials
  • -40 to 100ºC operating temperature
  • Optional vented gauge, IP67-rated cable
  • 2-year warranty for defects in materials & workmanship
  • Built in the USA (ARRA Section 1605 Compliant)
  • NSF/ANSI 61 and 372, CE certified

The Keller Econoline general purpose pressure transmitter is intended for almost any application involving aggressive media where small size, low weight and low cost are required. This proven design uses a media-isolated, piezoresistive silicon sensor combined with state-of-the-art signal conditioning electronics. The result is a robust transmitter that will provide trouble-free service and accurate results for an array of applications from pipeline pressure to tank level monitoring.

The Econoline also provides outstanding performance under harsh environmental conditions, including those with high levels of electromagnetic radiation, both conducted and radiated.

The Econoline offers choice of pressure ranges, electrical connections, and analog outputs (current or voltage) to simplify installation and ensure compatibility with most PLC and SCADA systems.

Keller 1820-28-A3 External Surge Protector
Keller 1820-28-A3 External Surge Protector

Lightning/surge protection of power supplies, readouts, and PLCs.

In Stock
$149.00
Keller HU02216001 Cable Hanger
Keller HU02216001 Cable Hanger

In Stock
$30.50
Keller Sour Gas Trap
Keller Sour Gas Trap

Effectively prevents any H2S vapor from migrating down the atmospheric vent of the level transmitter.

$26.00
Part Number Pressure Range Pressure Type Electrical Connections Accuracy Price Available
0166.00402.020401
Show Full Configuration
0 to 300 PSI
Gauge
Mpm393 mini-DIN connector with mate
0.25% FS Static 25 °C (1% F.S. TEB 0 to 50 °C)
 $135.00 1 in stock
0167.00603.020401
Show Full Configuration
0 to 1000 PSI
Sealed
Mpm393 mini-DIN connector with mate
0.25% FS Static 25 °C (1% F.S. TEB 0 to 50 °C)
 $135.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
