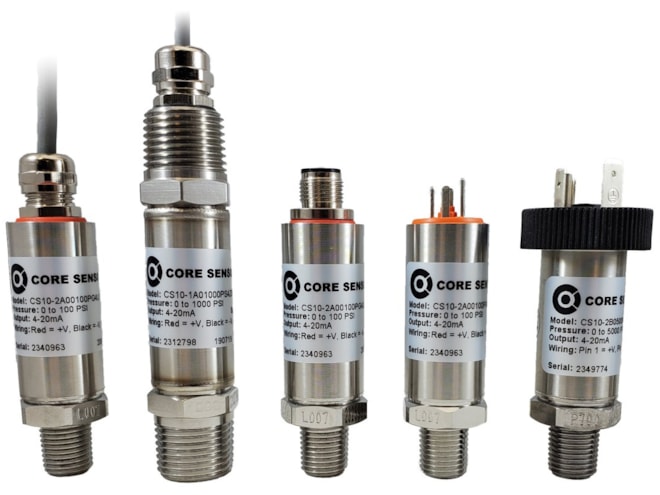

Core Sensors CS10 Industrial Pressure Transducer

Highly-configurable sensor for demanding industrial applications, pressures up to 40,000 psi.

Starting at $220.00

View Company Reviews
Manufactured
Includes
Availability
Product Specs

Features

  • Pressures from vacuum to 40,000 psi
  • Accuracy:
    • ≤ ±0.25% BFSL
    • ≤ ±0.5% BFSL (≤2 psi and >10,000 psi)
    • ≤ ±1% BFSL (Millivolt output signal)
  • ≤ ±0.25% of full scale stability
  • 100 million pressure cycles
  • 2x minimum overpressure
  • 5x or 60,000 psi (whichever is less) burst pressure
  • -40 to 185°F (-40 to 85°C) operating temperature
  • -40 to 248°F (-40 to 120°C) media temperature
  • TC Zero:
    • ≤ ±1% of full scale
    • ≤ ±2% of full scale (2 psi and below)
  • TC Span:
    • ≤ ±1% of full scale
    • ≤ ±2% of full scale (2 PSI and below)
  • EMI/RFI protection
  • IP65 rating

The Core Sensors CS10 industrial pressure transducer uses MEMS silicon strain gages mounted to a stainless steel or nickel alloy sensing element. The ASIC electronics offer analog voltage or 4-20mA loop powered output signals. Various process connections are available in 17-4PH, 316L or nickel alloy including Hastelloy C276 and Inconel 718. Electrical connections include cable or various integral connectors. Semi-custom and custom designs are available.

Core Sensors CS10 Industrial Pressure Transducer Applications

  • Water pressure monitoring
  • Hydraulic and pneumatic equipment
  • HVAC/R controls
  • Hydrogen (316L SS only)
  • Building controls
Core Sensors Electrical Adapters
Core Sensors Electrical Adapters

Electrical adapters for Core Sensors pressure transducers.

Some Models in Stock
Starting at $8.00
Core Sensors Cooling Adapter
Core Sensors Cooling Adapter

For applications with extreme media temperatures that exceed the rating of the pressure transducer.

In Stock
$150.00

This product can be used in the following applications:

Part Number Price Available
CS10-2A00500PS4A000-00
Show Configuration
$220.00 1 in stock
CS10-2A01000PS4A000-00
Show Configuration
$220.00 1 in stock
CS10-2A05000PS4A000-00
Show Configuration
$220.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 weeks". Click here to select options
