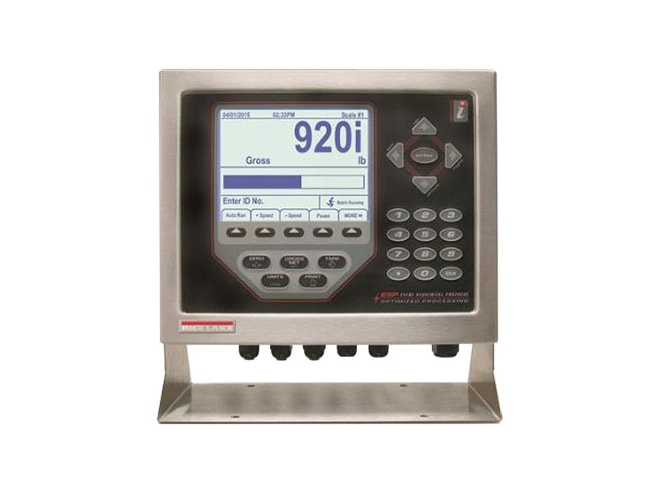

Rice Lake 920i Weight Indicator / Controller

Customizable weight indicator and process controller with flexible programming options.

Starting at $2,750.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-2 weeks
Product Manual Product Specs

Features

  • 100-200VAC, frequency 50-60 Hz
  • 12-24VDC
  • 10±VDC 16 x 350Ω or 32 x700Ω load cells per A/D card
  • -45mV to 45mV analog signal input range
  • ±0.01% full scale system linearity
  • Six I/O channels, optional 24-channel expansion
  • Four ports support up to 115,200bps
  • 4.6in x 3.4in, 320 x 240 pixel display
  • 14°F to 104°F certified temperature range
  • 14°F to 122°F operating temperature range
  • NEMA Type 4X/IP66, stainless steel enclosure

The Rice Lake 920i weight indicator and process controller blends intelligent user interfaces, flexibility, and processing performance with the simplicity of a basic weight indicator. A customizable LCD graphical display, programmable softkeys and industry recognized electronics are surrounded by a rugged enclosure to create trusted weight indicators and process controllers.

The Rice Lake 920i indicator/controller standard features include selectable character sizes, 60 configurable operator prompts, 32 scale accumulators, ten programmable display screens and millivolt calibration, five-point linearization and geographical calibration.
