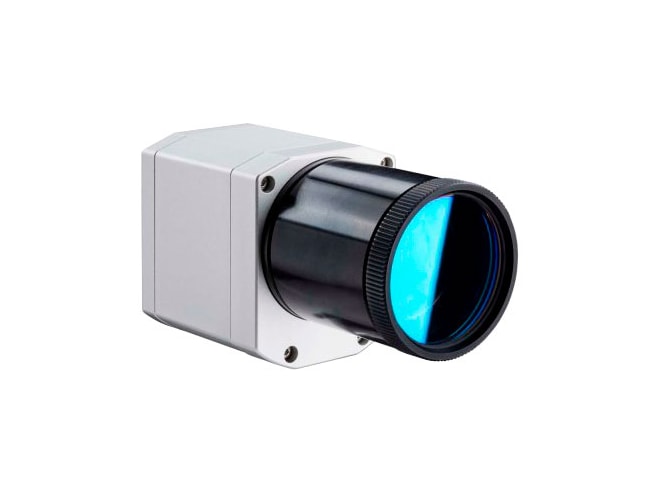

Optris PI 08M Infrared Camera

366,720 (764 x 480) pixel resolution, up to 3452F, 2K sensitivity, 1 kHz frame rate.

Starting at $4,995.00

View Company Reviews
Manufactured
Includes
Availability
Product Family
Product Specs

Features

  • 26° x 16° FOV, f = 0.98in
  • ±1% accuracy
  • 800 nm spectral range
  • 764 x 480 px optical resolution
  • Switch between 80 or 27Hz measurement speed
  • Temperature ranges up to 3452°F
  • 75mK temperature resolution
Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

The Optris PI 80m infrared camera was developed with a spectral range of 800 nm to decrease measurement errors resulting from unknown or changing emissivities. Due to the spectral range as well as the continuous measurement range from 1067° to 3452°F, this compact infrared camera is suited for NIR and CO2 laser processing applications.

The Optris PI 80m infrared camera comes with thermography software PIX connect, allowing real-time temperature analyzation and remote control of the camera. Also, individual alarm levels with defined visual or acoustic alarm signals can be set.
