Frontier Wireless Sensor Kit | Instrumart

Frontier Wireless Sensor Kit

Retired products cannot be ordered

Please contact Instrumart for a recommended replacement

View Company Reviews

Part Number

FKIT0901

Manufactured

By Frontier

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

8-10 hrs continuous operation
Li-ion and Li-Po internal batteries
Up to 10m between Sender and Receiver
128kHz sampling rate

What's in the Box

Sender
Receiver
BNC-to-BNC pigtail cable
Two USB charging cables
Mounting tape
Reclosable, self-adhesive mounting tape
Quickstart guide

This product is an accessory for the following products:

Bently Nevada VB Series Condition Monitors

Bently Nevada VB Series Condition Monitors

Portable single, dual & four channel models (VB5, VB6, VB7, & VB8), formerly known as Commtest VB Series.

Select options for pricing

Bently Nevada VB Series Condition Monitors

Bently Nevada VB Series Condition Monitors

Portable single, dual & four channel models (VB5, VB6, VB7, & VB8), formerly known as Commtest VB Series.

Select options for pricing

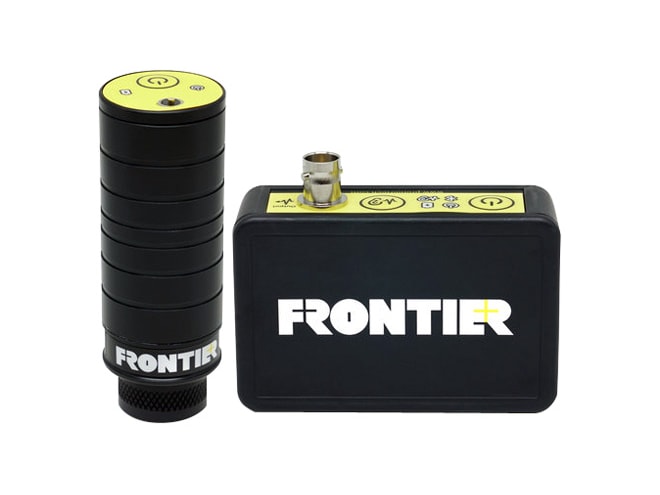

Frontier wireless sensor is an accessory for any Portable Data Collector (PDC) that offers cordless data collection with any sensor and any instrument. The existing cable connecting your PDC to your accelerometer is replaced with a wireless connection. This wireless connection provided by Frontier is invisible to your PDC and you can continue to collect your data just like you always have without changing any settings or configuration of your PDC or software. Frontier works with accelerometers of any sensitivity and so can be used completely interchangeably with a conventional cable.

Frontier has a Sender and a Receiver, which are small battery-powered devices used in a pair. The Sender screws directly onto any standard 2-pin ICP/IEPE accelerometer in place of a conventional cable. It powers the accelerometer, captures its output analog signal, and continuously streams this over a Wi-Fi connection to the Receiver. The Receiver feeds the signal into the ordinary analog input connector of any conventional PDC. Multiple Sender/Receiver pairs can be used in the same vicinity without them interfering with each other.

The Receiver can also connect wirelessly to Bluetooth® listening headphones to allow you to listen to the vibration signal when collecting data. The Receiver provides a 2kHz High Pass audio filter for use when using Bluetooth headphones. Turning this filter on will remove all the lower frequency sound of typical machine operation, allowing the remaining higher frequency sounds associated with bearing wear and damage to be heard more clearly.

Spec Sheets

Frontier Wireless Sensor Kit Spec Sheet (286 KB)

Manuals

Frontier Wireless Sensor Kit Manual (1023 KB)
