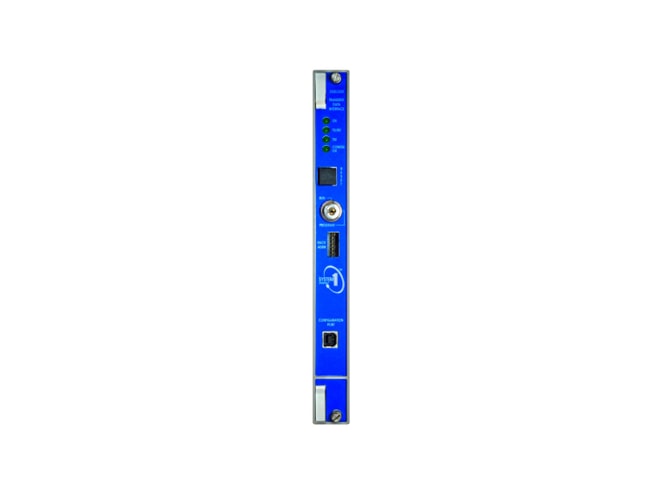

Bently Nevada 3500/22M Data Interface Module
Select options for pricing

Not in stock. Usually ships in 3-4 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 10.5 Watts power consumption
  • USB-B front panel
  • 10Base-T or 100Base-TX Ethernet, autosensing
  • 100Base-FX Fiber-Optic Ethernet
  • Rack reset button
  • Pre and post-alarm data
  • LED indicator
  • I/O module relay

Bently Nevada 3500/22M Data Interface Module is the interface between the 3500 monitoring system and compatible software (System 1* Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.

The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.

Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.

Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).

Bently Nevada 3500/09 Dynamic Data Enabling Disk
Enables the number of channels of dynamic data that the TDI will support
Call for pricing
Bently Nevada 138131 Ethernet Cables
Standard 10 Base-T/100 Base-TX Shielded Category 5 Cable with RJ-45 connectors (solid conductor)
Select options for pricing
Bently Nevada 161756 Fiber Optic Cable
100 Base-FX fiber optic cable with MT-RJ female connectors
Select options for pricing
Bently Nevada 288055-01 Interface Module
Standard Transient Data Interface Module with USB cable
Call for pricing
Bently Nevada 100M2833 USB Cable
10 foot A to B USB cable
Call for pricing
Bently Nevada 146031-01 I/O Module
Models available include: 10Base-T/100Base and 100Base-FX (Fiber Optic)
Select options for pricing
Bently Nevada 00580441 Connector Header
2 position or 3 position models available, internal termination
Select options for pricing
Bently Nevada 00580436 Connector Header
Connector Header Internal Termination 6-position Green
Call for pricing
