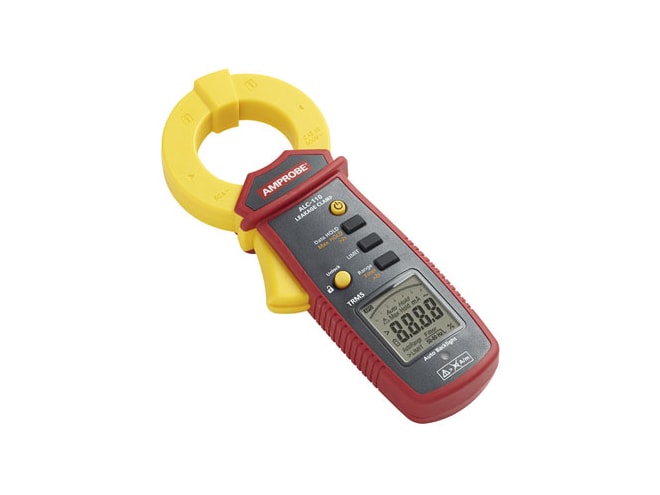

Amprobe ALC-110 Leakage Clamp

True RMS measurements of currents up to 60A with 1.2in (30mm) jaw opening and CAT III 600V safety rated.

Amprobe ALC-110 Leakage Clamp

Amprobe ALC-110 Leakage Clamp
Amprobe ALC-110 Leakage Clamp with Case

$846.85

View Company Reviews

Part Number

ALC-110

Manufactured

By Amprobe

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

Max resolution 0.001mA (6mA range)
Max range 60A (0.01A resolution)
Limit audible/visual alarm
0.25, 0.5, 3.5, 10, & 12mA selectable limits
15Hz to 1kHz frequency range
Low pass (50/60Hz)
Appliance filters (IEC/EN 61557-16)
Max readings and hold function
Low influence of external low frequency magnetic fields
- @ IN: 3.500 to 600.0mA
- ≤30 A/m, operating class 2
6000 count display
Typical battery life of 60 hours
CSA, CE, and EMC compliance
- IEC/EN 61326-1, IEC/EN 61326-2-2

What's in the Box

Two AAA batteries
Soft carrying case
Manual
1-year limited warranty

The Amprobe ALC-110 leakage clamp features a mechanical jaw lock to assure accuracy of low current measurements, avoiding disturbance from measured wires and magnetic fields.

Amprobe ALC-110 Leakage Clamp Applications

Measure earth and differential leakage currents
Measure leakage currents through the earth (PE) conductor
Measure appliance current consumption without interruptions to the circuit
Trace the source of earth leakage current
Identify intermittent GFCI trips without switching equipment off

Spec Sheets

Amprobe ALC-110 Leakage Clamp Datasheet PDF (566 KB)

Manuals

Amprobe ALC-110 Leakage Clamp Manual PDF (4.4 MB)
