Michell Instruments XZR400 Oxygen Analyzer

Trace analyzer designed to measure oxygen as an impurity in pure inert gases such as nitrogen, carbon dioxide, argon and helium.

Starting at $7,318.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-9 weeks
Product Manual Product Specs

Features

  • 0.1 to 250,000ppm (25%) oxygen measurement range
  • Less than 2% of reading accuracy
  • ±0.1% of reading repeatability
  • 1% per month stability
  • Better than ±1% of reading linearity
  • 1 to 3 Nl/h with built-in fast loop sample flow rate

The Michell Instruments XZR400 oxygen analyzer uses metallic sealed reference sensor (MSRS) technology to detect trace oxygen in clean gases. The XZR400 monitors purity in production and when used in processes. The analyzer can also be used for cylinder filling and other applications where a precise measurement of oxygen is required.

The MSRS technology-based sensor responds to input changes in less than 11 seconds. A sealed reference sensor also allows measurements to be made without a reference gas and independent of the quality of the surrounding air. The XZR400 analyzer is virtually drift-free, extending calibration interval time.

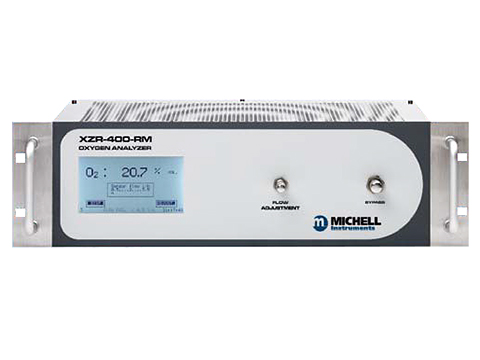

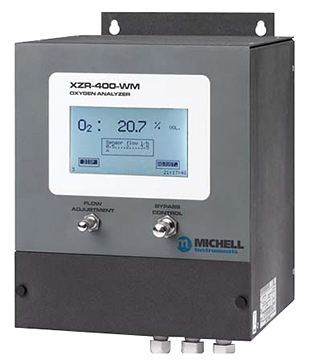

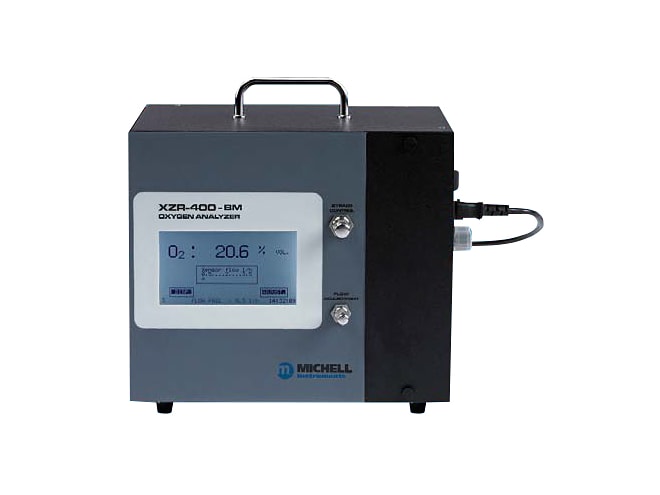

Four chassis options are available, including rack-mount, wall-mount, bench-mount, and transportable. The analyzer also offers various internal options including pumps, flow alarms and digital communications.

Michell Instruments XZR400 Oxygen Analyzer Applications

  • Gas quality measurements
  • Environmental control applications
  • Semiconductor and nuclear industries
  • Industrial gas manufacturers
  • Combustion pre-mixing analysis
  • Respiratory or medical gas mixtures
  • Heat-treating applications such as galvanizing furnaces
  • Tracing leaks in glove boxes
  • Simulation in laboratories
Michell Instruments Calibration Kit
Michell Instruments Calibration Kit

Calibration kit without gas cylinder for XZR 200 and XZR400 oxygen analyzers and XZR500 combustion control analyzer.

$1,077.00
Michell Instruments Filter Element
Michell Instruments Filter Element

Filter element for XZR400 oxygen analyzer.

$22.00
Michell Instruments Sensor Oven
Michell Instruments Sensor Oven

Replacement sensor oven for XZR400 oxygen analyzer.

$1,503.00
Michell Instruments Replacement Sensor
Michell Instruments Replacement Sensor

Replacement sensor for the XZR400 oxygen analyzer.

$1,463.00
Michell Instruments Filtering Module
Michell Instruments Filtering Module

Combustion gas filtering module for XZR400 oxygen analyzer (transportable chassis type only).

$2,907.00
