Michell Instruments S8000 Remote Chilled Mirror Hygrometer
Starting at $14,342.00

Not in stock. Usually ships in 8-14 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • ±0.18°F (±0.1°C) accuracy
  • ±0.09°F (±0.05°C) reproducibility
  • -40°F (-40°C) to 194°F (90°C) dew point range
    2-stage sensor
  • -40°F (-40°C) to 248°F (120°C) dew point range
    High-temp sensor
  • <0.5 to 100% RH range
  • Gold-plated copper mirror

What's in the Box

  • Calibration certificate
  • Dew point sensor
  • Remote Pt100 temperature probe
  • Sensor cable
  • SD memory storage card
  • Optics cleaning kit
  • USB communications cable
  • IEC power cable

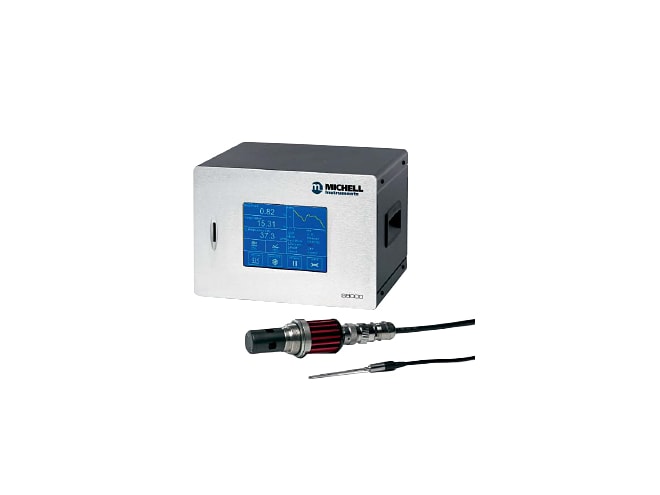

The Michell Instruments S8000 Remote chilled mirror hygrometer features a new sensor design, incorporating a high-precision 1/10DIN PT100 to provide ±0.18°F (0.1°C) accuracy of dew point measurement. To further improve the accuracy of pressure-derived calculated values, an optional external pressure transducer can provide real-time pressure compensation for these parameters. This allows for continued measurement stability even during sample pressure fluctuations.

The remote sensor design allows the open cell sensor to be placed directly into the environment to be monitored. For more challenging applications, where direct insertion is not possible, the sensor can be mounted in a sample block and included in a sampling system.

The choice of communication methods allows straightforward connection to a DCS, PLC or datalogger. Alternatively, Michell provides PC-based application software, allowing control of all instrument functionality remotely and the ability to graph and log parameters directly to the host PC. A high-contrast touch screen LCD display provides customizable local indication of the measured values, a trend graph, and fault warnings.

The hygrometer's built-in logging system provides the ability to log the values of the instrument parameters at operator-specified intervals. The log files are saved directly onto an SD memory card for easy transfer to a PC for analysis or correlation with test results.

Michell Instruments S8000 Remote Chilled Mirror Hygrometer Applications

  • Engine test cell monitoring
  • Environmental chamber verification for
    component testing, corrosion testing, and pharmaceutical validation
  • Precision HVAC control
  • Lithium Ion battery manufacture

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Michell Instruments S8000 Readings
Data recorded before calibration adjustment
$545.00
Michell Instruments S8000 Custom Dew Point
Additional DP calibration point for UKAS/ISO17025 calibration
$170.00
Michell Instruments S8000 Custom RH Point
Additional %RH calibration point for UKAS/ISO17025 calibration at the same temp as ordered unit
$63.00
Michell Instruments S8000 Custom RH Temp
5-point UKAS/ISO17025 %RH calibration for an additional temperature
$313.00

Accessories

Please consider these optional accessories.

Michell Instruments S8000 Remote PRT
4-wire PT100, 1/10 DIN class B, ±0.18°F (0.1°C) measurement accuracy, with 6.56ft (2m) cable and connector
$375.00
Michell Instruments S8000 Re-Calibration
One year is the recommended calibration interval, choice of standard factory calibration or UKAS accredited
$545.00
