Starting at $2,199.95
  • Usually ships in 3-5 weeks



  • Cloud or local network capability
  • Accelerometers:
    • Triaxial + temperature 10 kHz FMax
    • Full waveform and spectrum data
    • Programmable internal RMS trigger
    • Maximum 6400 lines of resolution
  • Amperage Monitoring:
    • 3 phases
    • 5 to 1000A monitoring range
  • 200,000 RPM range
  • Temperature Monitoring:
    • Thermocouple
    • Infrared non contact sensor
  • IP67 dust and water proof

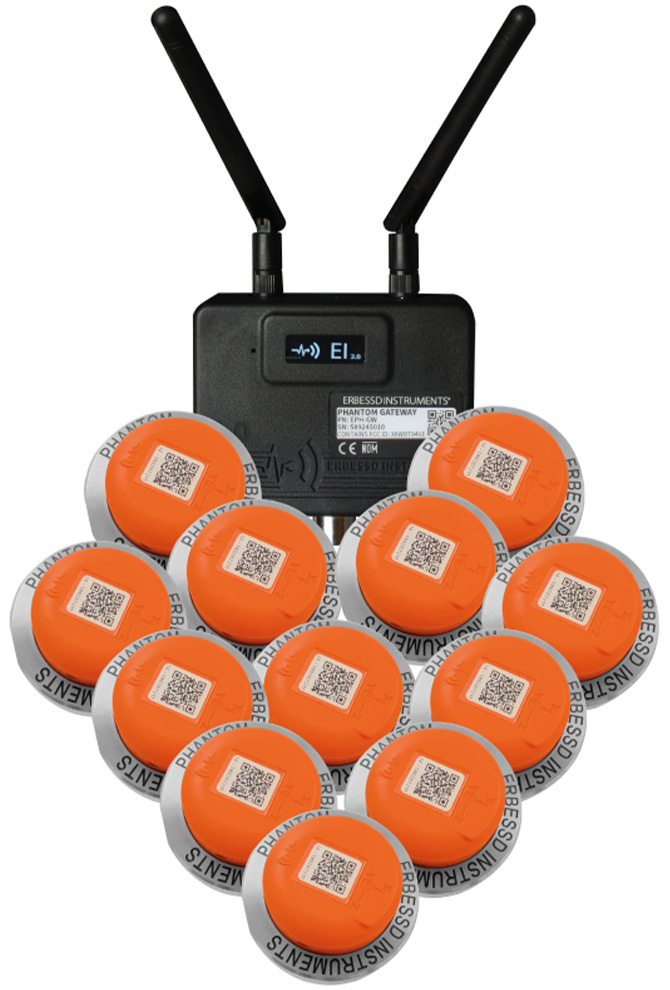

What's in the Box

  • 1 Gateway
  • 12 Phantom Sensors
  • Software


The Erbessd Instruments Phantom Remote Monitoring System integrates other parameters such as temperature, current, RPM and speed into a single diagnosis system. The sensors have a battery life that lasts enough to take up to 100,000 measurements and they are very easy to install. Equally important, the Phantom can send data to a local database or to the cloud-based system, EIAnalytic. At any moment, you can keep track of your machinery using any device such as a smartphone, computer or tablet.

The Phantom Vibration Monitoring System will help you to predict machine failures and save huge amount of costs due to non-programmed down times in production. For example, the following list are the most common failures that can be identified by our condition monitoring system:

  • Bearing Failure Stage I, II, III, and IV
  • Imbalance
  • Shaft and Bearing Wear
  • Mechanical Looseness
  • Misalignment
  • Electrical noise
  • Resonance
  • Among others
