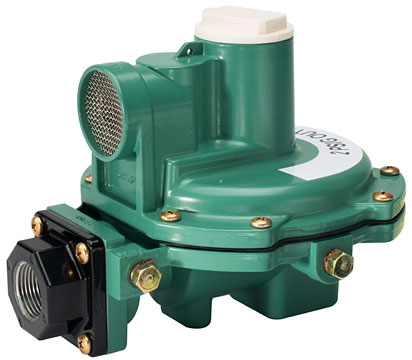

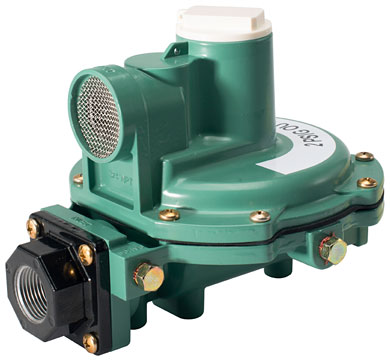

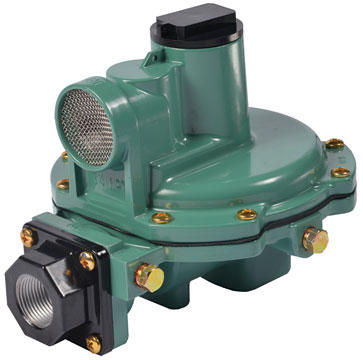

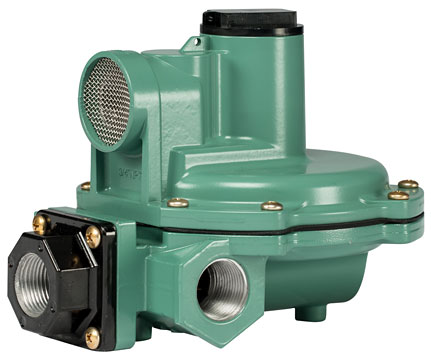

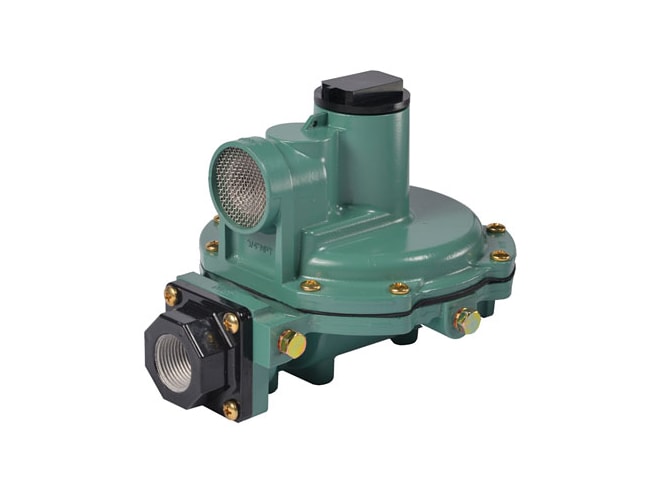

Fisher R600 Series Second-Stage Regulators

Up to 1,500,000 BTU/hr, 1/2 or 3/4in NPT inlets up to 10 psi and reduces to 8 in WC to 2.2 psi, for two-stage residential LP-gas systems. Learn more...

Features

  • 10 psig (0.69 bar) maximum inlet pressure
  • Propane flow capacities up to 1,500,000 BTU/hr
  • 1/2 or 3/4in female NPT inlet
  • 1/2 or 3/4in female NPT oulet
  • 3/4in NPT screened vent
  • -20 to 160°F (-29 to 71°C) operating temperature
  • 20-year recommended replacement life
  • UL listed & CRN certified

The Fisher R600 series second-stage regulators are designed to reduce the outlet pressure from a first-stage regulator in domestic applications. Inlet and outlet gauge taps allow for easy system testing. The combination of a high capacity relief valve and large vent provide overpressure protection that exceeds UL standards. When used in conjunction with an R122H or R622H, the two-stage system will limit the downstream pressure to 2 psig even in a double failure situation.

Fisher equipment must be installed, operated and maintained in accordance with Federal, state, and local codes and Fisher instructions. Only personnel trained in the proper procedures, codes, standards and regulations of the LP-gas industry should install and service this equipment.

Part Number Price Available
R622-BCF
Show Configuration
$104.40 16 in stock
R622-DFF
Show Configuration
$104.40 13 in stock
R642-DFF
Show Configuration
$114.84 10 in stock
R652-CFF
Show Configuration
$111.36 10 in stock
R622-CFF
Show Configuration
$104.40 8 in stock
R652-DFF
Show Configuration
$111.36 8 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4 weeks". Click here to select options
