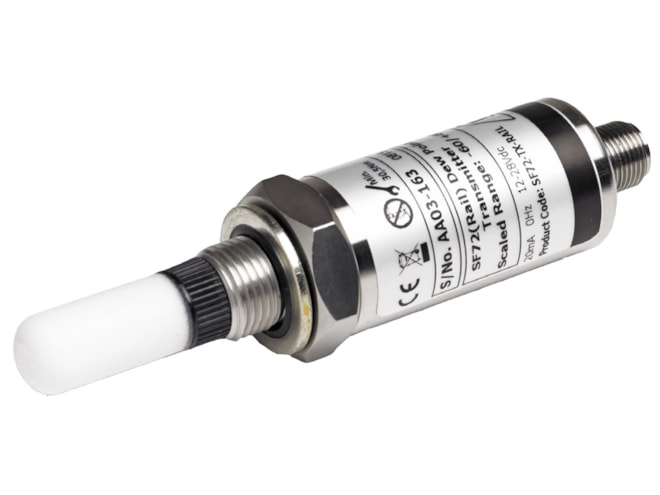

Michell Instruments SF72 Rail Moisture Transmitter

Pressure rated to 450 bar with ±2°C accuracy across measurement ranges available between -60 to 60°C dew point.

Michell Instruments SF72 Rail Moisture Transmitter

Retired products cannot be ordered

The Michell Instruments SF82 Dew Point Transmitter is the recommended replacement

View Company Reviews

Part Number

SF72

Manufactured

By Michell Instruments

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Dew point measurement range –60 to +60°Cdp
±3.6°Fdp (±2°Cdp) accuracy
450 bar (45 MPa) maximum operating pressure
Ideal for membrane and refrigeration dryer use
Compatible with Compressed Air Quality ISO8573.1
- Class 2 to 6 requirements
316 stainless steel IP66 construction
G1/2 BSP, 3/4 & 5/8 in UNF process connections
Hirschmann GDS (DIN 4350-C) electrical connection
HDPE (<10μm) or optional SS sintered (<80μm) guard
Service exchange program
EMC/RFI approval to rail standard EN50121-3-2
Shock/vibration approved to rail standard IEC16373:1999-01

What's in the Box

Traceable 8-point calibration certificate

The Michell Instruments SF72 rail moisture transmitter is a cost-effective moisture transmitter designed to continuously monitor the performance of the compressed air dryers on railway rolling stock to ensure both safety and efficiency of braking and other systems. It features a compact design and measurement ranges within -60 to 60°C dew point, making it ideal for industrial dryer applications. This dew point range is measured with ±3.6°F (±2°C) accuracy and ±0.36°F (±0.2°C) resolution. A two-wire 4 to 20mA analog output comes scaled for the SF72's full range standard.

With its 316 stainless steel, IP66 construction, the Michell Instruments SF72 rail moisture transmitter has been rated for EMC/RFI approval to rail standard EN50121-3-2 and shock/vibration approval to rail standard IEC16373:1999-01. Two filters are available for this Michell Instruments rail moisture transmitter; the standard HDPE guard for particulate less than 10μm or an optional sintered guard for particulate less than 80μm. Additionally, the SF72 complies with Compressed Air Quality ISO8573.1 Class 2 to 6 requirements.

Spec Sheets

Michell Instruments SF72 Rail Moisture Transmitter Datasheet PDF (681 KB)

Manuals

Michell Instruments SF72 Rail Moisture Transmitter Manual PDF (514 KB)
