$1,595.00

UP100KT

UE Systems

1 in stock

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 35 to 44kHz frequency range
  • 10-segment LED bar graph
  • 8-position sensitivity selection
  • 300 msec response time
  • 1-year parts and labor warranty

What's in the Box

  • Ultraprobe 100 with pistol housing
  • Scanning module
  • Rubber focusing probe
  • Stethoscope module
  • Warble tone generator with battery recharger
  • Lightweight noise-attenuating headphones
  • 9-volt replaceable alkaline battery
  • Nylon cordura soft carrying case

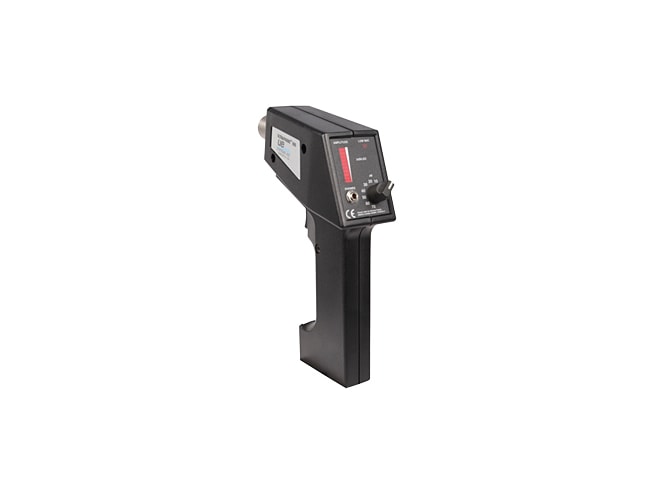

The UE Systems Ultraprobe 100 Ultrasonic Inspection System is an analog tool that senses high frequency sounds produced by operating equipment, leaks and electrical discharges. The signals are electronically translated by heterodyning, which converts the high frequency sounds into the audible range so they are easily recognized and understood. The user can both hear the sounds through a headset and view them as intensity increments on the Ultraprobe gun's LED meter.

The Ultraprobe 100 features an 8-position sensitivity dial with decibel indications, and an LED bar graph display in which each LED equals approximately 3dB for calculating decibel levels.

Ultrasound technology is advantageous for inspection because it produces a high-frequency, short-wave signal. Since it is directional and localized, it is ideal for point-and-shoot troubleshooting. It can also be easily blocked or shielded and used in noisy environments. Changes in ultrasound provide early warning of potential problems.

Ultraprobe 100 Ultrasonic Inspection System Applications

  • Pressure and vacuum leaks
  • Valve seat leaks
  • Exhaust system leaks
  • Leak testing of tanks and pipes
  • Heat exchangers, boilers, condensers
  • Steam trap inspection
  • Bearing testing
  • Gear box inspection
  • Wind noise, water leaks, hatches
  • Mechanical inspection and troubleshooting
  • Electrical inspection
UE Systems HTS-1 Holster Set
Holster set for the Ultraprobe 100 ultrasonic inspection system to keep hands free for walking routes and climbing ladders
$99.00
UE Systems Deluxe Headset for Hardhats
Headset that functions as hearing protection device for use in high noise environments; adjustable Velcro loop head band
$139.00

Application Notes

Here's how some of our customers used this product.

Testing for Pipeline Leaks

The Background: Our customer is an energy company that builds and maintains buried pipelines to transport natural gas to their customers. They seek a reliable means of testing the lines to ensure they are not leaking.

The Problem: Underground gas leaks can have very serious financial, safety, and environmental implications. Complex pipelines contain may fittings and valves which are potential areas for leaks. Once pipelines are buried, it is extremely costly to find and fix leaks.

The Solution: We recommended the UE Systems Ultraprobe 100 ultrasonic inspection system which senses high frequency sounds produced by pressure and vacuum leaks. Since it uses sound, detection is directional and localized making it easy to pinpoint the leaks. The customer will use the Ultraprobe 100 to test pipelines before they are buried and pressurized which will save the company a lot of time and money.
