Starting at $177.24

Not in stock. Call for availability [?]

Need Help? Call a Flow Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 0-232 psi
  • Brass body
  • NBR/PA or FKM seal
  • 1/4 to 1 1/2 in pipe size
  • 7/16 to 1 9/16 in orifice
  • 1.40 to 19.32 CV flow factor
  • NEMA 4

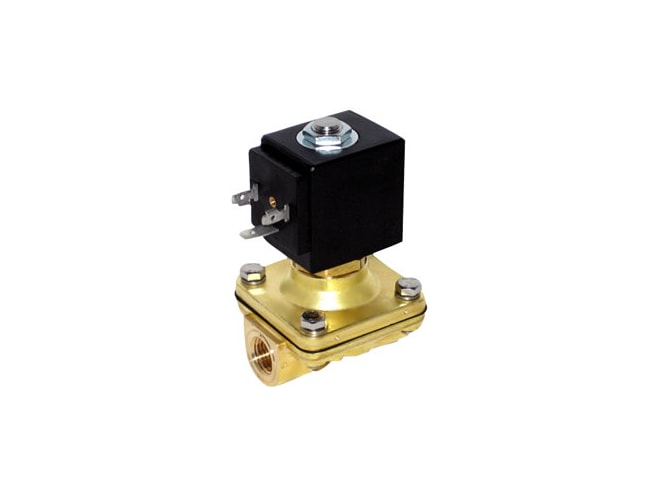

Granzow H Series direct-lift solenoid valves are 2-way, normally-closed valves with pilot control, and will operate with zero psig. They are designed for direct pipe mounting. The valves are available with interchangeable coils for both AC and DC voltages. Solenoid valves in this series are used in such applications as water treatment, pumps, spraying, and automation equipment with medium such as air, inert gas, water, and synthetic oils (FKM seals).
