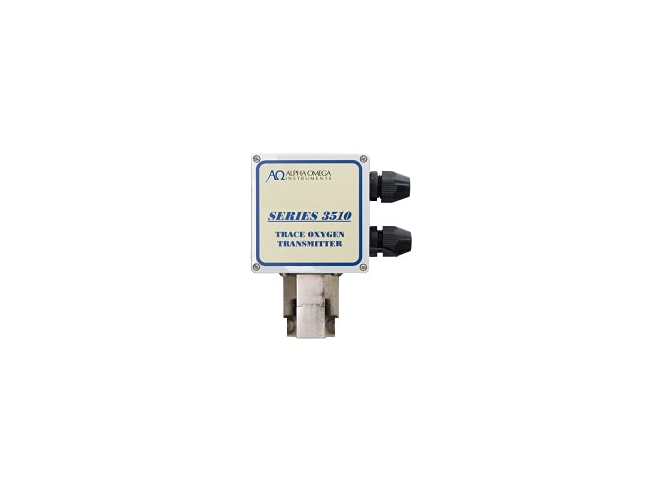

AOI Series 3510 Oxygen Transmitter
Trace oxygen analyzer with measurement ranges up to 5,000ppm.
Overview
Features
- Measurement range options:
- 0 to 5,000ppm
- 0 to 1,000ppm
- 0 to 500ppm

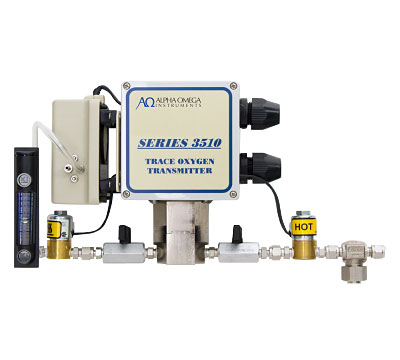

- Model options:
- Base model
- Pressure regulator model
- Pump model
- Application gas stream pressure:
- Base model: 0.1 to 1.5psig pressure, 1.0 to 2.0 SCFH (0.5 to 1.0l/min) flow
- Pressure regulator model: 1.5 to 100psig pressure
- Pump model: Atmospheric pressure down to -1.7psig
- ±1% of full scale accuracy
- 90% of full scale in less than 10 seconds response time
- 40 to 104°F (5 to 40°C) operating temperature range
- Universal 90 to 264 VAC power supply
- 4-20 mADC analog output
- 2-year electronics and 1-year sensor warranty
- Standard polycarbonate (NEMA 4 without options) enclosure
Description
The AOI Series 3510 Oxygen Transmitter is the AC-powered counterpart to the Series 3500, and is recommended when AC power is available or preferred. The transmitter's enclosure is made from durable polycarbonate. The 4-20 mADC output can be used with a data logger, recorder, programmable logic controller, or digital control system.
The Series 3510 features an ambient-temperature electrochemical sensor. The enhanced mechanical design of the sensor ensures longer life, and virtually eliminates leakage of caustic electrolyte. The sealed sensor is not position-sensitive and does not require manual adjustment based on changes in the molecular weights of sample gases such as helium and hydrogen. The output from the sensor is both linear and temperature-compensated to provide optimum performance.
Applications
- Heat Treating
- Air Separation
- Glove Boxes
- Inert Gas Generators
- Chemical Manufacturing
- Process Dryers
- Vessel Blanketing
- Petrochemical Processing
- Pharmaceutical Manufacturing
- Anaerobic Chambers
- Food Processing
- Beverage Processing
