MSI VibVue Motion Magnification

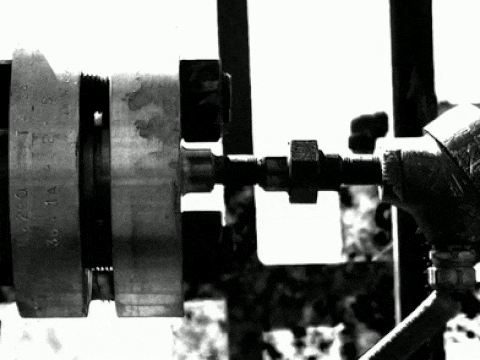

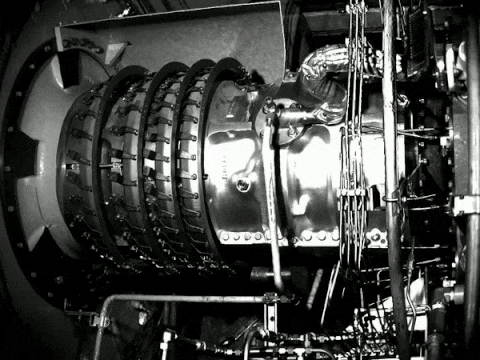

MSI VibVue motion magnification for high-speed vibration analysis allows you to see the natural excitation signature of your machine or structure, including higher order modes, such as those caused by vane or blade pass frequencies. This process facilitates quick and comprehensive understanding of the object in motion.

With MSI VibVue you can measure millions of data points in minutes without touching the equipment. The high-speed video determines the frequency at each pixel from a safe distance, great for restricted areas. This information is then displayed on the actual image so there is no question about what you are looking at.

MSI VibVue is much clearer and more accurate than modal operating deflection shape (ODS) which takes more time to place hundreds of test points (all for less data), is susceptible to human error because it requires judgement about where to place the probes, and displays as a roughly rendered CAD drawing.

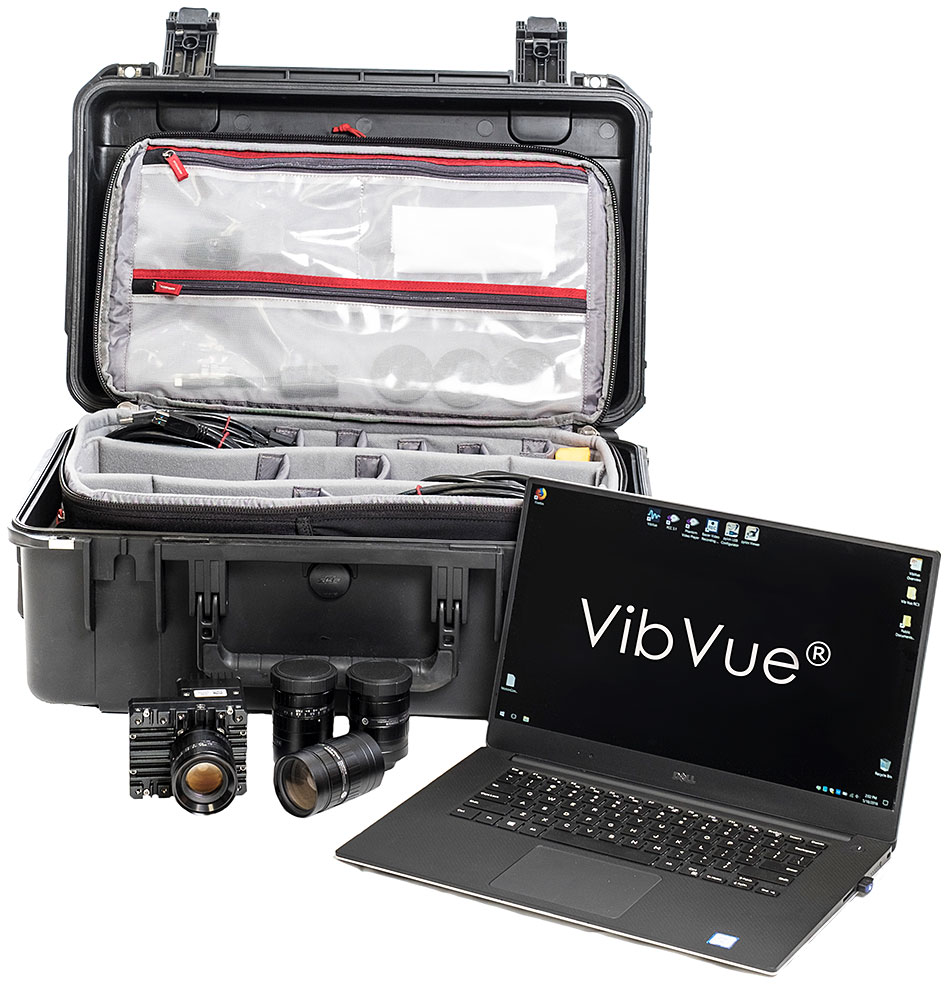

VibVue Lite Kit includes:

• VibVue camera (monochrome or color)
• VibVue Lite and Analysis Lite software licenses
• Four precision lenses (6mm, 12mm, 25mm, 50mm)
• High-performance laptop
• Flicker-free LED light and stand
• Camera tripod and quick connector
• Laptop tripod stand
• Laser distance meter
• Vibration-dampening tripod pads
• Accessories: high-speed cables, lens case, lens cloth, sun hood
• Durable Pelican travel case
• 1 day hands-on training for 2 people at MSI HQ or half-day remote session
• 1 year of software updates, MSI’s expert project review, and tech support included

VibVue Pro Kit includes:

All hardware in the Lite Kit listed above, plus:

• Upgrade to VibVue® Pro and Analysis Pro licenses
• Warp Speed – uncapped frequency detection
• Modal Analysis (trigger kit sold separately)
• Live Analysis – real-time diagnostics
• Automated report generation (.PPT, .XLSX, .PDF)
• Vibration standard chart overlays (ISO 10816, Energy Institute)
• Advanced time-domain filter settings (passband/stopband)
• Early access to new Pro-exclusive features
• 1 day of hands-on training for up to 4 people at MSI HQ or remote session
