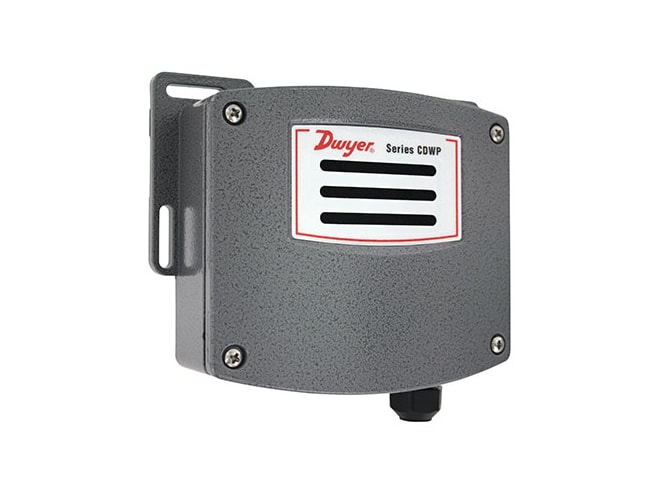

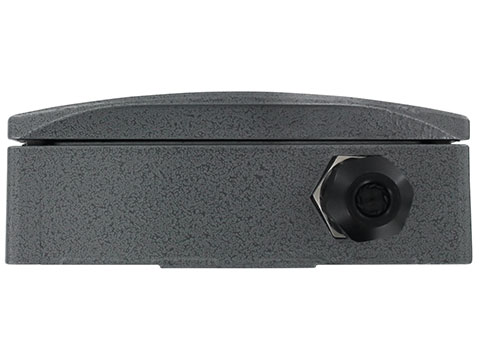

Dwyer CDWP Series Carbon Dioxide Transmitter

NDIR sensor housed in IP54 die cast aluminum available with sensor ranges of 2,000, 5,000 and 10,000ppm.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Single beam, dual-wavelength NDIR sensor
  • 0 to 2000, 0 to 5000, or 0 to 10000 ppm ranges
  • ±40 ppm ±3% of reading accuracy
  • Outputs:
    • Current: 4 to 20 mA (max. 500 Ω)
    • Voltage: 0 to 5 VDC or 0 to 10 VDC (min. 500 Ω)
  • IP54 enclosure rating

The Dwyer CDWP Series carbon dioxide transmitter features a non-dispersive infrared CO2 sensor with universal outputs in an industrial housing. The single beam dual-wavelength NDIR sensor eliminates light source aging effects which increases sensor life and accuracy. This sensing technology provides this Dwyer CO2 transmitter with highest level of accuracy compared to Automatic Baseline Correction (ABC) methods, which can unintentionally shift the calibration based on CO2 levels and barometric pressure conditions.

The IP54 aluminum housing of the Dwyer CDWP Series carbon dioxide transmitter features a gray finish which is designed to withstand a 168 hour salt spray test. Common applications for the Dwyer CDWP include animal husbandry, mechanical rooms, CO2 refrigeration monitoring and greenhouses.

Dwyer CDWP Series Hang Bracket Kit
Dwyer CDWP Series Hang Bracket Kit

Suspended mounting bracket for Dwyer CDWP carbon dioxide transmitter.

Call for pricing
Dwyer CDWP Series Replacement Lid Kit
Dwyer CDWP Series Replacement Lid Kit

Replacement lid kit for Dwyer CDWP carbon dioxide transmitter.

Call for pricing
