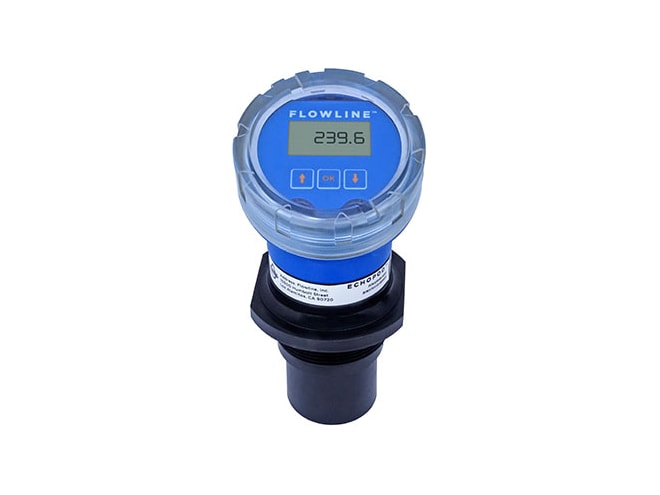

Flowline EchoPod UG06 & UG12 Reflective Ultrasonic Level Transmitters
Multi-function transmitter for continuous level measurement up to 39.3 ft (12m) with a 4-20 mA analog signal output and four relays
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Measurement ranges:
- 8 in. to 19.6 ft. (20cm to 6m)
- 18 in. to 39.3 ft. (45cm to 12m)
- Fail-safe diagnostics
- Selectable relay & signal outputs
- Corrosion resistant PVDF transducer
- 3 in. (7.6cm) dead band maximizes tank filling capacity
- Temperature compensation from -40° to 80°C.
- Four programmable relays with embedded control logic:
- 1 pump or valve with 3 alarms
- 2 pumps lead-lag with 2 alarms
- 2 pumps duplexing with 2 alarms
- 4 independent switch point alarms
- CE, RoHS compliance
The Flowline EchoPod UG06 and UG12 reflective ultrasonic level transmitters offer continuous level measurement up to 39.3 feet (3m) and feature a 4-20 mA analog signal output and four relays. Additionally, configuration of the UG06 and UG12 can be done via WebCal software (free download). What makes this Flowline EchoPod ultrasonic level transmitter stand out is its proprietary Reflective Technology™ which allows for reliable measurement in condensing environments.
Each relay of the Flowline EchoPod UG06 and UG12 reflective ultrasonic level transmitters can be configured for alarm, automatic fill or empty functions. Common applications for these EchoPod units include day tank, IBC or drum, cooling tower, ski or machine, process tank and waste sumps. Additionally, the UG06 and UG12's Reflective Technology™ make it an ideal fit for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil.
WebCal software is a PC utility program that enables users to easily configure and test compatible Flowline level sensors to their measurement and control requirements.
