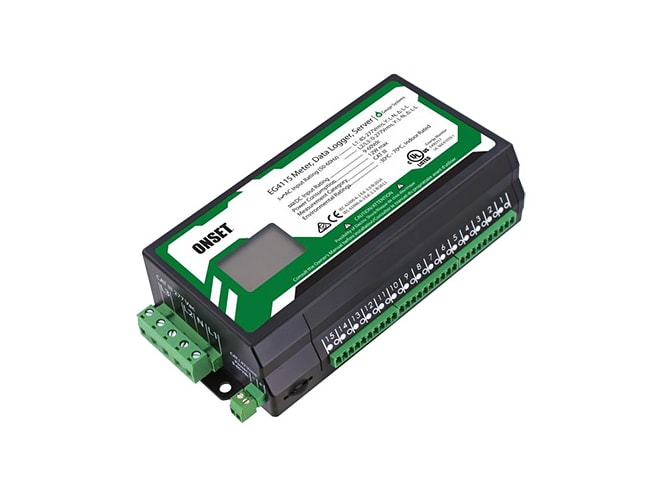

HOBO EG4115 Core Data Logger

Fully web-configurable indoor data logger with built-in web server & 15 sensor inputs for current, voltage, power and more. Learn more...

Overview

Features

  • 9 logging values
    • V, A, W, Wh, Hz, VA, VAr, THD, deg
  • 15 sensor inputs
    • 5-6900A max per channel
    • Fully isolated inputs
  • 50 or 60Hz frequency
  • 0.5% revenue grade accuracy
  • 9-60VDC power
  • HomePlug AV powerline communication
  • Includes 1 Ethernet & 2 USB ports
  • Built-in web server
  • Fully web-configurable
  • Built-in solid-state memory
  • No batteries required
  • Sensor sold separately
  • 2-year warranty

Description

The HOBO EG4115 Core data logger has 15 sensor inputs and supports wide range of current transformers for any size load. It is a flexible solution for monitoring multiple circuits in residential and commercial energy monitoring applications. The EG4115 measures AC current, AC voltage, amps, kilowatt hours, kilowatts, volt-amp reactive, volt-amp reactive hours, watt hours, and watts. An embedded web server connects to the interface over the internet or on a local area network. Data can be accessed as granular 1-second averages for the most recent hour of recording.

Documents

Accessories

HOBO EG4100 Series Current Transformer Sensor
HOBO EG4100 Series Current Transformer Sensor

Split-core CT sensor with multiple current ratings, overvoltage protection circuit & hinged body is easy to install in tight spaces.

Some Models in Stock
Starting at $37.00
HOBO Rogowski Coil Sensor
HOBO Rogowski Coil Sensor

Flexible self powered rope CT designed to be used where regular split core CTs cannot fit.

Starting at $130.00
HOBO Accu-CT Current Transformer
HOBO Accu-CT Current Transformer

Highly accurate split-core current transformer designed for single handed operation.

Starting at $62.00
HOBO T-MAG-SCT Series AC Transformer
HOBO T-MAG-SCT Series AC Transformer

Split-core design for fast, easy installation, up to 600A measurements, accuracy at 10% to 130% of rated current.

Starting at $60.00

Applications

This product can be used in the following applications:

Here's how some of our customers use this product...

Portable Power Logging

The Background: Our customer is an energy auditing company that needs an easy and portable solution for monitoring and logging energy parameters from multiple circuits in the facilities for which they provide services.

The Problem: Part of their energy auditing included measuring multiple energy parameters which may include AC current, AC voltage, amps, kilowatt hours, kilowatts, volt-amp reactive, volt-amp reactive hours, watt hours, and watts. Finding an integrated and cost-effective way to measure these parameters has been difficult.

The Solution: We recommended the HOBO EG4115 Core data logger has 15 sensor inputs and supports wide range of current transformers for any size load. It is a flexible solution for monitoring multiple circuits in residential and commercial energy monitoring applications. We recommended the EG4115 paired with HOBO Rogowski Coil Sensors and a Pelican Case to make a portable kit. The EG4115 is powered by mains power from the building so no battery is needed. It is able to handle up to 15 channels total.
