$850.00

EG4130

HOBO Data Loggers by Onset

2 in stock

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 9 logging values
    • V, A, W, Wh, Hz, VA, VAr, THD & deg
  • 30 sensor inputs
    • 5-6900A max per channel
    • Fully isolated inputs
  • 50 or 60Hz frequency
  • 9-60VDC power
  • Built-in web server
  • Fully web-configurable
  • Built-in solid-state memory
  • Interactive graphical interface
  • No batteries required
  • Sensor sold separately
  • 2-year warranty

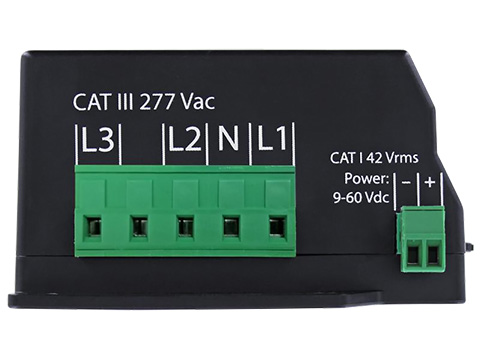

The HOBO EG4130 Pro data logger combines an energy meter, data logger, and web server in a single compact unit. Data can be stored and retrieved directly from the device or remotely via the internet. The EG4130 measures AC current, AC voltage, amps, kilowatt hours, kilowatts, volt-amp reactive, volt-amp reactive hours, watt hours, and watts. The intuitive user interface accesses historical and live data from the lifetime of the hardware, including real-time values and long-term reports. The EG4130 also supports wide range of current transformers for any size load.

HOBO EG4100 Series Current Transformer Sensor
Split-core CT sensor with multiple current ratings, overvoltage protection circuit & hinged body is easy to install in tight spaces
$35.00
In Stock
HOBO Rogowski Coil Sensor
Flexible self powered rope CT designed to be used where regular split core CTs cannot fit
$125.00
In Stock
HOBO Accu-CT Current Transformer
Highly accurate split-core current transformer designed for single handed operation
$45.00
HOBO T-MAG-SCT Series AC Transformer
Split-core design for fast, easy installation, up to 600A measurements, accuracy at 10% to 130% of rated current
$55.00

Application Notes

Here's how some of our customers used this product.

Monitoring Power Consumption and Cost

The Background: Our customer is an industrial facility. As part of an energy efficiency initiative designed to lower operating costs, they want to monitor the energy consumption of 27 machines and seek a means of accomplishing that.

The Problem: The customer wants a simple, all-in-one solution that causes as little disruption as possible.

The Solution: We recommended the HOBO EG4130 Pro data logger which measures AC current, AC voltage, amps, kilowatt hours, kilowatts, volt-amp reactive, volt-amp reactive hours, watt hours, and watts. Data can be stored and retrieved directly from the device or remotely via the internet. The EG4130 can handle up to 30 current sensors and has the ability to convert usage to actual cost. It is the perfect solution for this application.
