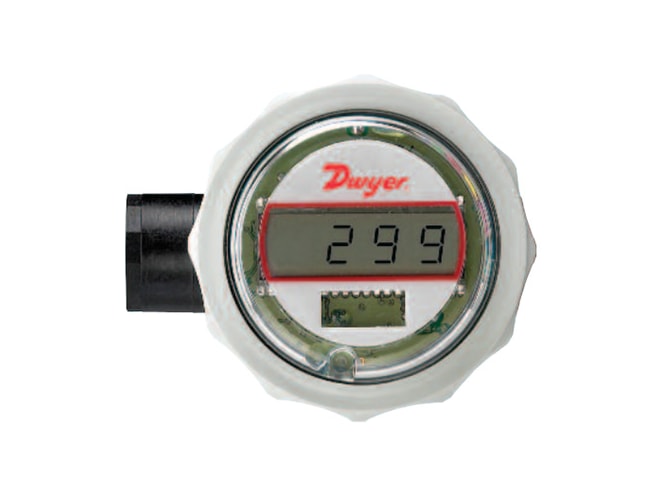

Dwyer BPI Battery Powered Temperature Indicator

Accepts RTD or thermocouple inputs & provides local or remote display of temperature measurements. Learn more...

Overview

Features

  • Accepts RTD or thermocouple inputs
    • K, J, T, N, R, S, E, or F thermocouples
  • User-programmable
    • Input type
    • Engineering units (°F/°C)
    • Offset temperature
    • Decimal point position
    • Password protection
  • Four-digit segmented display
  • NEMA 4X (IP66) enclosure
  • 3.6 V AA lithium metal battery

Description

The Dwyer BPI battery powered temperature indicator accepts RTD or K, J, T, N, R, S, E, or F thermocouple inputs. The indicator is housed in a NEMA 4X (IP66) enclosure, which can withstand an ambient operating temperature range of -4 to 185°F (-20 to 85°C), and provides local or remote display of temperature measurements with 0.1°C resolution.

Three push buttons on the Dwyer BPI battery powered temperature indicator allow the user to select input type, engineering units (°F or °C), offset temperature, decimal point position, and password protection. Featuring a 0.3 inch (7.6 mm) 4-digit LCD, this Dwyer unit requires one 3.6 V AA lithium metal battery (included), which is user-replaceable.
