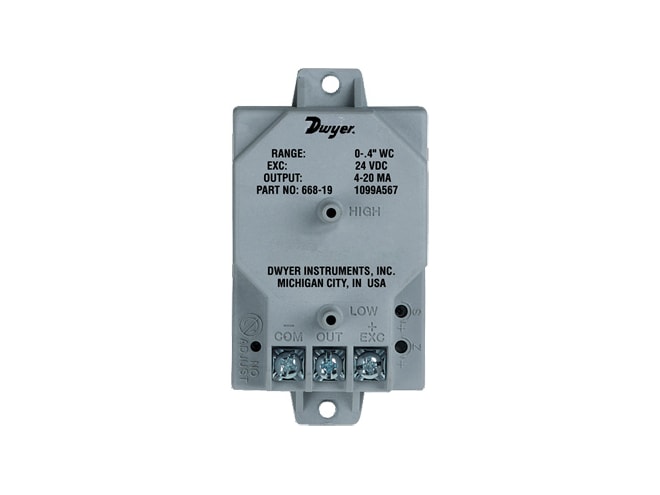

Dwyer 668 Differential Pressure Transmitter
Starting at $177.00

Not in stock. Usually ships in 3-5 business days [?]

Need Help? Call a Temperature Engineer 1-800-884-4967

We're open 8:00am to 5:30pm ET


  • Air and non-conductive gases
  • ±1% FS accuracy
  • Operating temp: 0 to 150°F
  • 10 psig over pressure
  • 4 to 20 mA, 2-wire output
  • 3/16in OD fitting for 1/4in ID tubing pressure connection

The Dwyer 668 Differential Pressure Transmitter is capable of measuring low pressures with a ±1% accuracy. It is ideally suited for proper building pressurization and air flow control. Transmitters can withstand up to 10 psig overpressure with no damage to the unit. Variable capacitance sensor design provides excellent sensitivity and long-term stability. Compact, lightweight design makes installation simple and easy. Units also feature reverse polarity protection.

Applications for the 668 include:

  • Variable air volume systems
  • HVAC
  • Building management
Dwyer A-489 Static Pressure Tip
4in straight static pressure tip with flange
Dwyer A-302F-A Static Pressure Tip
303 SS static pressure tip with mounting flange; for 3/16˝ ID rubber or plastic tubing; 4˝ insertion depth; includes mounting screws
Dwyer A-TC Protective Terminal Cover
Replacement protective terminal cover
Dwyer NISTCAL-PT1 NIST Calibration Certificate
NIST traceable calibration certificate for pressure transmitters
