Starting at $185.00

Need Help? Call a Flow Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 5/8in to 2in sizes available
  • Stainless steel or engineered polymer
  • ±1.5% accuracy
  • No moving parts
  • Sealed, non-removable, tamper-protected meter and register
  • 9-digit LCD display

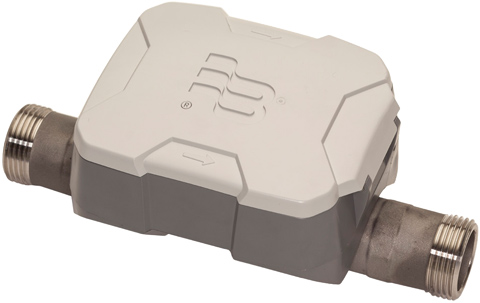

The Dynasonics U500w Ultrasonic Flow Meter use solid-state technology in a compact, totally encapsulated, weatherproof, and UV-resistant housing, suitable for building and property management submetering applications. Equipped with an easy-to-read, 9-digit LCD display, the Ultrasonic meter presents consumption, rate of flow, reverse-flow indication, and alarms. With no moving parts, the U500w meter also improves reliability and has greater extended low flow accuracy compared to other positive displacement meters.

Part Number Price Available
UA-EBAPPAX-E5-CA-19AE-A3Y2-XXTF-XX-B0A
Show Configuration
Base Price
$185.00
Material
Engineered polymer meter
Meter Size
3/4in (x 7 1/2in) (+$20.00)
Water Application
Potable water
Connector
Plastic connections, thick washers (+$25.00)
Unit of Measure
9 Dial, 0.01 Gallon, GPM, 1000
Testing
Badger Std (TS-421)
Reconfigure
$230.00 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
