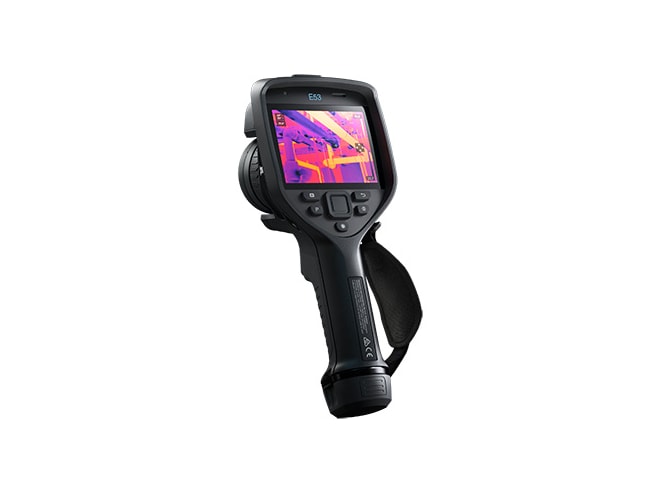

FLIR E53 Advanced Thermal Camera

FLIR E53 Advanced Thermal Camera
FLIR E53 Advanced Thermal Camera
How to Screen for Elevated Body Temperature Using a FLIR Thermal Camera

Retired products cannot be ordered

The FLIR E54 Thermal Imaging Camera is the recommended replacement

View Company Reviews

Part Number

84502-0201

Manufactured

By Teledyne FLIR

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Family

Exx Series

Product Specs (2 Files)

Features

240 × 180 (43,200 pixels) resolution
Object Temperature Range
- -20°C to 120°C (-4°F to 248°F)
- 0°C to 650°C (32°F to 1200°F)
<0.04°C @ 30°C
Manual focus
Image frequency of 30Hz
MSX® technology

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

Infrared camera with lens
Battery (2 ea)
Battery charger
Front protection
Straps (hand & wrist)
Hard transport case
Lanyards
Lens caps & cleaning cloth
Power supplies
8 GB SD card
Torx wrench
Cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C, USB Type-C to HDMI)

FLIR's E53 advanced thermal imaging camera offers an entry-level unit ideal for electrical and mechanical applications. Aimed at improving plant reliability, increasing plant safety and making your work day easier, the E53 offers superior resolution and range performance to help quickly identify hot spots and uncover potential points of failure in electrical distribution and mechanical systems or find hidden deficiencies and document problems in building applications more quickly and efficiently.

Even as an entry-level camera, the E53 features a 240 x 180 (43,200 pixels) IR resolution and selectable object temperature ranges of -20°C to 120°C (-4°F to 248°F) and 0°C to 650°C (32°F to 1200°F). Additionally, this camera has a manual focus and several measurement presets including no measurement, center spot, hot spot, cold spot, 3 spots and hot spot-spot (hot spot to center spot Delta measurement). MSX® technology embosses visual details on a full resolution thermal image. The Li-ion battery can be charged in the camera or on a separate charger and provides up to 2.5 hours of battery life during typical use.
