• -40 to 1787°F temperature range
  • ±1% or ±2.7°F accuracy
  • 2:1 or 10:1 optical resolution
  • 8 to 14µm spectral range
  • 100ms response time
  • 0.1 to 1.1 adjustable emissivity
  • Universal analog output
  • 8-36VDC power supply
  • 100mA max current draw
  • Available in 3, 8 or 15m cable lengths
  • Includes D06ACCTMHS massive housing
  • IP65 NEMA-4 rated
Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

  • Mounting nut
  • D06ACCTMHS massive housing
  • Electronic box with LCD display
  • Programming keys
  • Manual

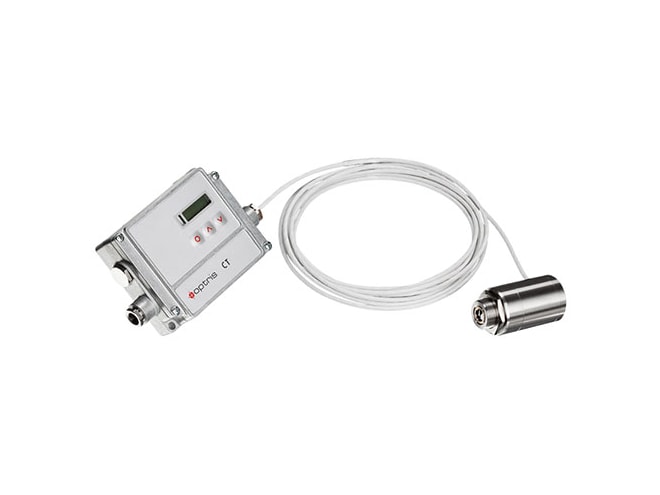

The Optris CThot infrared temperature sensor is designed for high-temperature environments. It can endure ambient temperatures up to 482°F without the need for additional cooling. It is suitable for applications in dryers, ovens, heat treatment lines for metal and glass, and semiconductor processing. The Optris CThot includes D06ACCTMHS massive housing to stabilize measurements in applications with significant and short-term variations in ambient temperatures.

Selectable analog outputs and multiple digital interfaces offer high variability. Field selectable analog outputs options include 0/4-20mA, 0-5, and 0-10 V, and type K or J thermocouples. The Optris CThot includes a programmable functional input for setting external emissivity, ambient temperature compensation, and reset of hold functions. It also features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis. USB, RS485, RS232 interface, 2 optically isolated relay outputs, CAN-Bus, Profibus DP, and Ethernet available with plug-in options.

The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.

In Stock

Part Number Price Available
$1,043.00 1 in stock

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number Price Available
$755.00 3 in stock
$885.00 3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 10-12 weeks". Click here to select options
