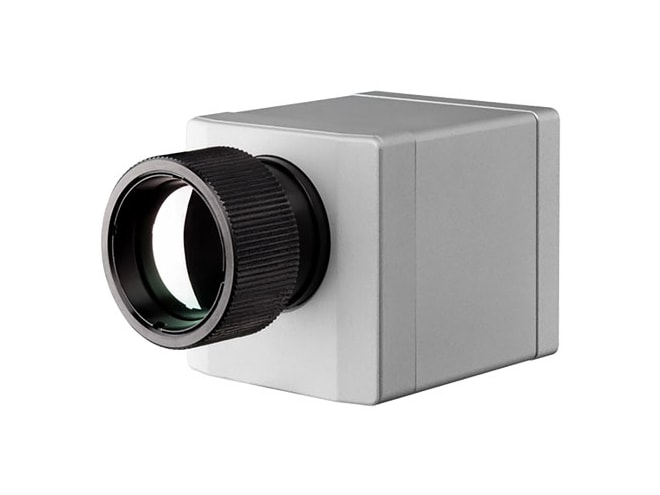

Optris PI 160 Infrared Camera
Starting at $3,305.00

Optris

PI Series

Not in stock. Usually ships in 3-5 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • Temperature ranges
    • -4 to 212°F
    • 32 to 482°F
    • 302 to 1652°F
    • 392 to 2732°F
  • 6° x 5°, 23° x 17°, 41° x 31°, or 72° x 52° lens
  • 80mK thermal sensitivity
  • ±3.6°F or ±2% accuracy
  • 160 x 120 pixel optical resolution
  • 7.5 to 13µm spectral range
  • 120Hz frame rate
  • USB power supply

What's in the Box

  • 1 lens
  • Table tripod
  • 3.3ft USB cable
  • 3.3ft PIF cable with terminal block
  • Optris PI Connect software package
  • Aluminum case

The Optris PI 160 infrared camera measures surface temperature with speed of 120Hz. It features a wide temperature range from -4° up to 1652°F which can be expanded to 2732°F. It is available with four different optics including 6° x 5°, 23° x 17°, 41° x 31°, or 72° x 52°.

The Optris PI Connect Software offers extensive analysis of measurement data both on and off line. It can be customized to suit the demands of even the most unique applications. Features include automatic process and quality control, video recording, snap shot, and remote control of the camera. The PI connect software is necessary to interpret measurement results and is compatible with all netbooks, notebooks, and computer systems using Windows 7, 8, and 10.

Optris ACPICERT Calibration Certificate
Option for high temperatures up to 2192°F
$195.00
Optris Advanced Cooling Jacket
Protection for harsh industrial environments, operates at ambient temperatures up to 599°F, available with additional mounting support
$1,905.00
Optris Basic Cooling Jacket
114 x 229mm stainless steel cooling jacket for temperatures up to 356°F
$850.00
Optris Focusing Unit & Front End
Required component for Optris advanced cooling jacket
$185.00
Optris Cooling Jacket Protective Grid
Available in 2 & 3.15mm size, recommended component for the Optris cooling jacket, not for PI series with 48° lens
$180.00
Optris Cooling Jacket Mounting Bracket
Available as adjustable in either one or two axes
$45.00
Optris ACPIMB Mounting Base
Stainless steel mounting base adjustable in 2 axes
$65.00
Optris ACPIPH Protective Housing
Stainless steel protective housing with mounting base
$140.00
Optris Outdoor Protective Housing
24VDC housing for camera, USB server & industrial process interface with integrated heater, protection window & air purge collar
$1,220.00
Optris ACOPHWM Wall Mount
For Optris outdoor protective housing
$75.00
Optris ACOPHPAS Outdoor Protective Housing Preassembly
Factory assembled PI camera & accessories into outdoor protective housing
$15.00
Optris ACCJAPIPIFMA Industrial Process Interface
For integration into outdoor protective housing, 500 VACRMS isolation voltage between PI camera & process, 25cm connection cable
$240.00
Optris Industrial Process Interface with Connection Box
Available with 5, 10, or 20m of cable, cable glands or right angle connector & temperatures up to 482°F
$320.00
Optris ACPIUSBSGB USB-Server Gigabit
USB-Ethernet converter for PI series infrared cameras, includes 24VDC power supply
$555.00
Optris ACPINBPH Protective Housing
For PI NetBox, IP 65 rated
$310.00
Optris ACPIPOE PoE Injector
For PI NetBox or USB-Server
$120.00
Optris PI NetBox
Mini PC with hardware & software integrates with the PI Infrared Camera series for a stand-alone system or USB to Ethernet adapter
$1,785.00
