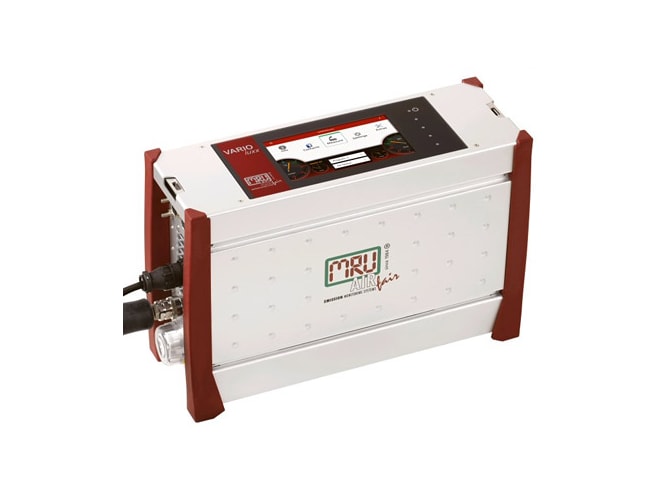

MRU Vario Luxx Emission Analyzer
$7,624.00

944030

MRU Instruments

Usually ships in 3-4 weeks [?]

instrumart-trustpilot-badge

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • Combustion air temp up to 930°F
    • Using adequate NiCrNi probes
  • ±40 inH2O (100 hPa) differential or stack gas pressure
  • Gas temp measurement depends on probe accessory
    • Up to 1200°F with stainless steel
    • Up to 2012°F with Inconel
    • Up to 3090°F with ceramic
  • User settable O2 referencing (normalization)
  • Analog 4-20mA, 8-channel outputs & 4-channel inputs
  • Universal AUX input 0-10V, 4-20mA, Type-K, or RS485
  • CTM 30, CTM 34 & ASTM D6522 compliance

What's in the Box

  • Long Life O2 sensor (4 to 5yr life expectancy)
  • Integrated Peltier cooler & auto condensate drain pump
  • Regulated sample gas pump & replaceable PTFE filter
  • Zero gas (ambient air) inlet nozzle
  • Passive vent outlet nozzle for sample gas
  • Linux OS & 7in (840x480) graphical display
  • Internal 10,000 point memory & external 4GB USB stick
  • Universal power supply 90-264VAC (105 watt)
  • 1hr Li-Ion 48W battery for stand-by operation
  • Soft padded nylon case with accessory compartment
  • Country specific fuel type list for combustion calculation

The MRU Vario Luxx emission analyzer uses infrared (3-gas) and electrochemical cells (6-gas) for precise measurement. It is most suitable for low Nox measurements and other toxic gas applications, but can also be used for gas engines, turbines, large boilers, furnaces, etc. Perform tuning, trouble-shooting, compliance reporting, or long-term monitoring of nearly any combustion application. This analyzer meets MCP Directive 2015/2193 for medium combustion plants with rated power less than 50MW.

The Vario Luxx has automatic features to make it easy to use:

  • Internal diagnostics
  • Zeroing using a 3-way solenoid valve
  • Data logging

While not automatic, the graphical data visualization and direct to csv or pdf file reporting are very intuitive features; transfer data to a PC via Ethernet or USB.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

MRU Vario Luxx EC Sensors
Electrochemical cell technology for gas measurement
$607.00
MRU 65684 CO2 NDIR Bench
CO2 analysis using a non-dispersive infrared sensor with 0 to 20% measuring range with an overload of 40%
$1,316.00
MRU Vario Luxx 3-Gas NDIR Bench
Non-dispersive infrared sensor for CO, CO2, and CxHy analysis
$2,225.00

Accessories

Please consider these optional accessories.

MRU Vario Luxx Pitot Tube
L-type tube with K-type thermocouple
$544.00
MRU 59773 Shoulder Strap
Adjustable shoulder strap
$17.00
MRU 59745 Transport Case
Robust aluminum frame transport case with trolley and wheels
$725.00
MRU Instruments Sintered Metal Filter
Sintered metal filter 20um or 2um, to be inserted in the above gas sample probe handle
$127.00
MRU 65670 Stainless Steel Mounting Fitting
Stainless steel mounting fitting Ø12mm-1/2in male, with PTFE fixing ring
$60.00
MRU Instruments 65418-12 Heat Deflector Shield
Heat deflector shield for high temperature radiation site (6in with 0.47in hole for probe tube)
$115.00

Application Notes

Here's how some of our customers used this product.

Recycling Used Motor Oil

The Background: Our customer is a processing company that converts used motor oil into Group I base oils, asphalt extenders and distillates. They seek a means of testing the emissions created by their process.

The Problem: The process of converting the used motor oil into commercially viable products involves burning the oil to collect the substrate which can be recycled for reuse. It is a process that needs to be monitored and controlled. Both for environmental and safety reasons.

The Solution: We recommended the MRU Varion Luxx Emission Analyzer fitted with the MRU Varion Luxx 3-Gas NDIR sensor bench. This set-up can monitor the important parameters, log the data, and export to a PLC/control system in the event of an alarm condition.
