$8,385.00

ATS2019

Accurate Thermal Systems

Not in stock. Call for availability [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • 122 to 1121°F (50 to 605°C) temperature range
  • Specifications at 932°F (500°C)
    • ±0.54°F (0.3°C) stability
    • ±5.4°F (3°C) accuracy
    • 1.08°F (0.6°C) radial uniformity at 10in depth
    • 1.8°F (1°C) axial uniformity over 9in
  • Requires clean, dry air supply at a fixed rate
    • 40 psi (2.76 bar), 3.5 ft³/min (100 L/min) max
  • 240VAC (50/60Hz), 20 amp power requirement
  • 4000 watt heat capacity
  • 1-year warranty & CE marked

What's in the Box

  • 100lbs of brown aluminum oxide media
  • Particulate extraction collar
  • Bath cover & lid
  • RS485 USB interface cable & PC software
  • Manual

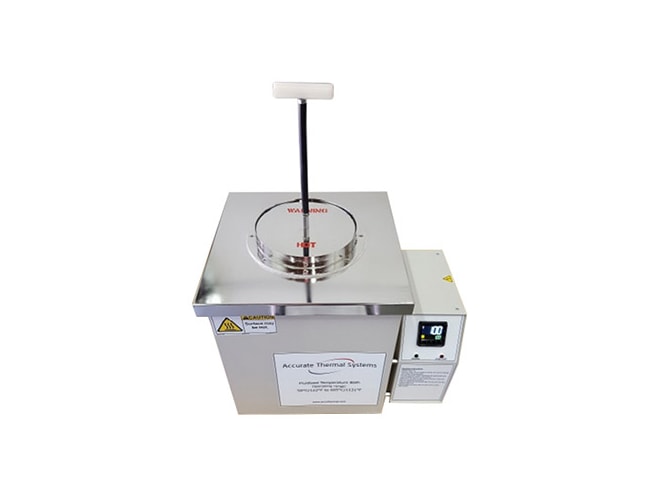

The Accurate Thermal Systems FTBSL15 fluidized temperature bath uses a cover and lid system to minimize media loss and keep your operating area cleaner. Media is blocked by the lid or collected on the cover flange which drops back into the system. You can also use the included particulate exhaust collar in conjunction with a blower and cyclone to capture any media that rises from the bath.

The lid can be easily modified to suspend a device, mandrel, or an apparatus to immerse. Accurate Thermal Systems also offers an accessory parts basket for this use. For safety, the handle is elevated above the lid to keep hands away from the heat. Another modification possibility is to add thermowells for calibrating multiple temperature sensors.

Like all Accurate Thermal Systems fluidized baths, the FTBSL15 is a much safer option over molten salt baths and immersed objects come out clean and dry with no material to remove. It also will provide better temperature stability and uniformity than ovens.

Recommended applications for the FTBSL15 are medical device shape setting, calibration, and reactor heating, but will also work for general heat treatment of materials and thermal analysis of circuits and components.

Accurate Thermal Systems ATS1040 Lid
Spare lid with handle for FTBSL15 and FTBSL25 fluidized baths
$165.00
Accurate Thermal Systems Temperature Validation Software
Use with a Windows PC to log fluidized bath data, create reports, and graph the setpoint and actual bath temperature over time
$295.00
Accurate Thermal Systems ATS1056 Parts Basket
Small parts basket for fluidized temperature baths, 6.625 x 6.625 inch volume, with 3/16 inch holes so small parts don't fall through
$290.00
Accurate Thermal Systems ATS1109 Parts Basket
Parts catch basket for the FTBSL15 fluidized temperature bath
$645.00
Accurate Thermal Systems ATS2017 Dust Collection Cyclone
Collect sand from the exhaust of the FTBSL15 or FTBSL25 fluidized temperature bath when used with a blower attachment
$360.00
