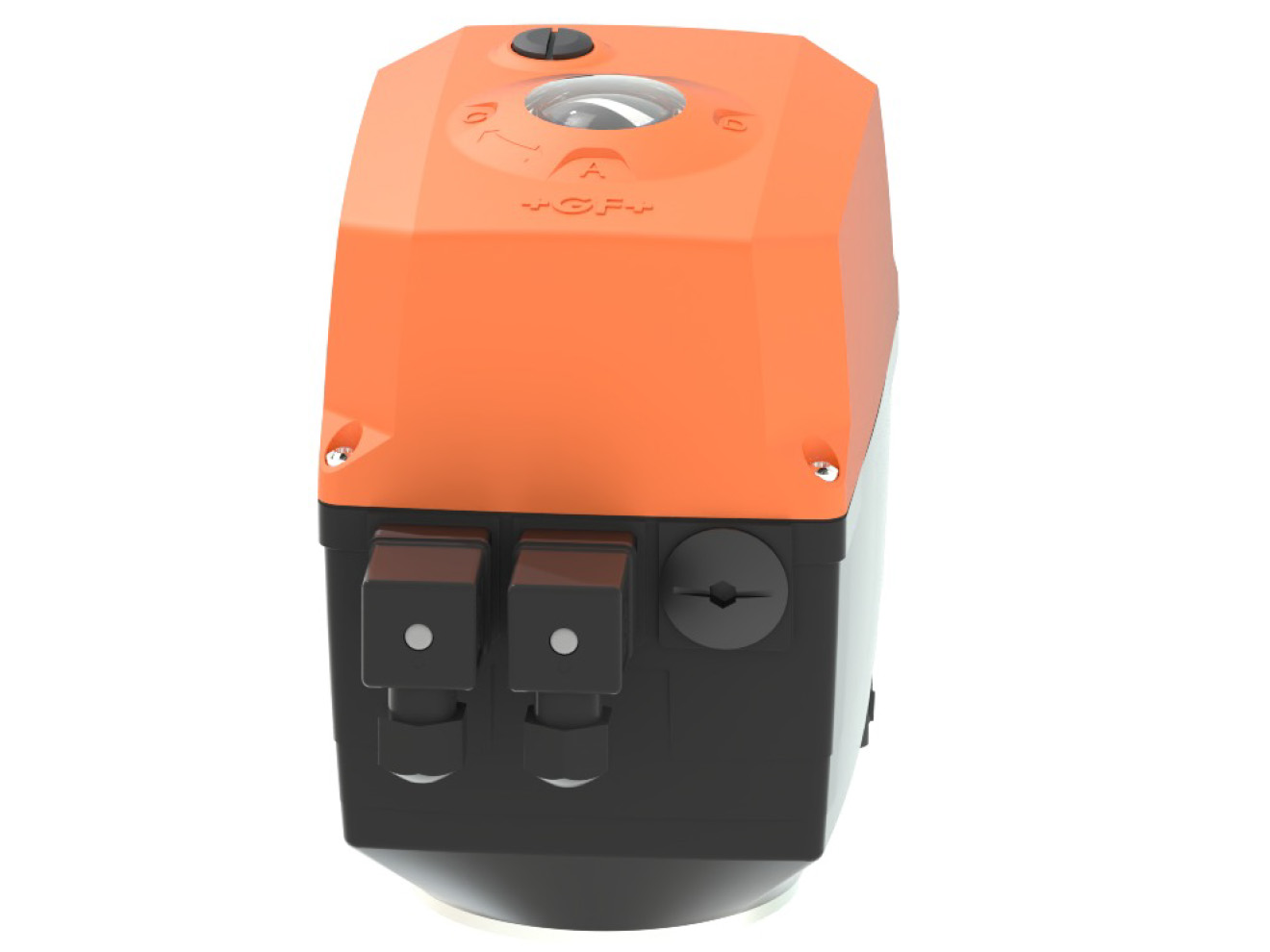

Georg Fischer EA15/25/45/120/250 Electric Actuator

Electric actuator compatible with GF ball valves, IP65 according to EN 60529, with torque ratings up to 250Nm.

Starting at $588.70

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Electric actuator series EA15 to EA250 for quarter turn valve automation
  • Torque range: 10 to 250Nm depending on model
  • Voltage: 24 V AC/DC or 100 to230 V AC
  • Protection rating: IP65 according to EN 60529
  • Control: open/close operation; three-position control available on EA25 to EA250
  • Position feedback: open/close standard; middle position on EA25 to EA250
  • Interfaces: F05 (EA15 to EA45) and F07 (EA120 to EA250)
  • Temperature: integrated adjustable heater included
  • Options: fail safe return unit available
  • Certification: cUL E247458

The Georg Fischer EA15/25/45/120/250 electric actuator is a quarter-turn actuator series for valve operation with basic position A-C opened and activated position B-C opened as defined by the flow scheme. The range includes EA15, EA25, EA45, EA120, and EA250 models.

All actuators include an adjustable heater and a 7 segment error LED. The EA15 model provides open/close control with position feedback, while EA25 to EA250 models provide open/close and middle position control with corresponding position feedback ready to operate. The series is cUL listed (E247458).

Options include a failsafe return unit for all models. EA25 to EA250 models can also be equipped with a monitoring board, positioner, and Profibus DP board. Adapter compatibility includes F05 (WS 11/14) and F07 (WS17/WS22) interfaces depending on model size. The actuator range covers multiple torque classes depending on model, from 10Nm up to 250Nm maximum torque, with 24 V AC/DC and 100 to 230 V AC voltage options.
