Dwyer Digihelic Series Differential Pressure Controller
Starting at $408.00

Not in stock. Usually ships in 7-10 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 0.25 up to 100 in w.c. measuring range
  • ±0.5% accuracy
  • Air and non-combustible, compatible gases
  • ABS plastic housing material
  • Pressure, velocity or volumetric flow operation
  • Two SPDT control relays
  • Modbus communications

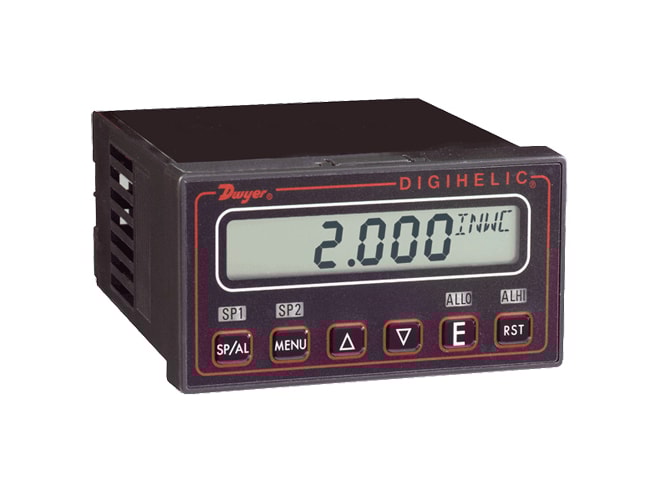

The Dwyer Digihelic Series Differential Pressure Controller is a 3-in-1 instrument possessing a digital display gauge, control relay switches, and a transmitter with current output. The Digihelic controller is the ideal instrument for pressure, velocity and flow applications, achieving a 0.5% full scale accuracy on ranges from 0.25 to 100 in w.c. The Digihelic controller allows the selection of pressure, velocity or volumetric flow operation in several commonly used engineering units. Two SPDT control relays with adjustable dead bands are provided along with a scalable 4-20 mA process output. The Series DH provides extreme flexibility in power usage by allowing 120/220 VAC and also 24 VDC power which is often used in control panels.

Applications for the DH Series include:

  • SCFM duct flow
  • Industrial ovens air flow
  • Filter status
  • Clean room pressurization
  • Fume hood air flow
  • Surgical and medical room pressurization
  • Damper and fan control
