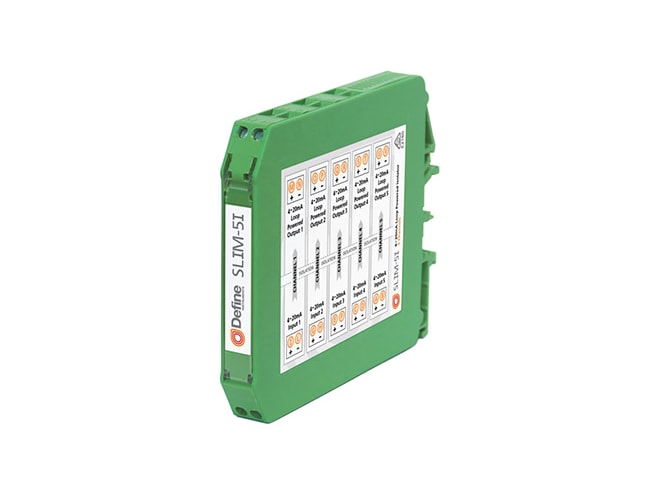

Define Instruments SLIM Isolator

Up to 5 isolated channels for 4-20mA DC inputs and outputs, loop powered or optional active output.

Features

  • Loop or auxiliary powered
    • 6.5 to 28V loop (channels 1 to 5)
    • 10 to 30VDC supply (channels 1 & 2)
  • Highly resistant to electromagnetic interference
  • No ground loops & zero crosstalk
  • Over range protection
  • <0.05% accuracy
  • 35mm DIN rail mounting, 1/2in wide case
  • Designed to withstand harsh EMC environments
  • CE approved & 5-year guarantee

The Define Instruments SLIM isolator offers input and output protection for polarity and inadvertent connection to 30VDC. The control system is protected from transients and noise because independent channels are isolated up to 2.5kV.

Part Number Price Available
SLIM-1I
Show Configuration
$108.00 4 in stock
SLIM-4I
Show Configuration
$300.00 4 in stock
SLIM-2I
Show Configuration
$192.00 3 in stock
SLIM-2I-P
Show Configuration
$208.00 3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
