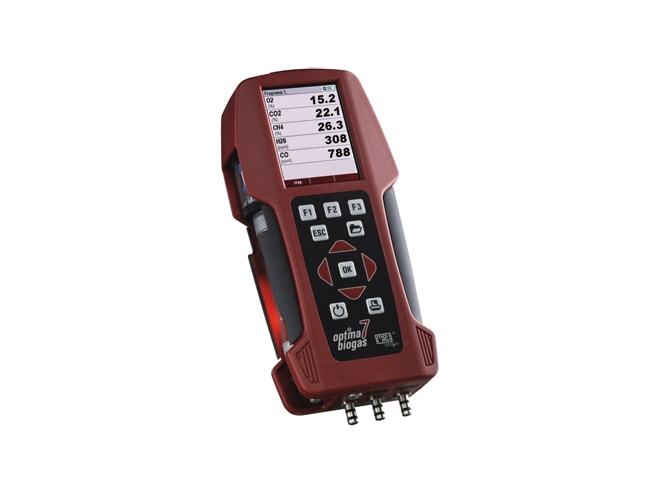

MRU OPTIMA 7 Biogas Analyzer
Starting at
$4,199.00

Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Measurements of up to 7 gas components
  • Biogas: O2, H2S, CH4, CO2 (infrared for CO2/CH4)
  • Emissions: O2, CO, NO, NO2 and CO2
  • Biogas pressure measurement (or stack pressure)
  • 3.5" TFT display with LED backlit
  • Intuitive menu guided software and function keys
  • 16,000 internal data storage
  • Li-Ion battery (up to 6-8 hours operation time)
  • Customizable screen settings
  • Durable and dirt resistant keypad
  • 2-year factory warranty

MRU OPTIMA 7 Biogas Analyzer simultaneous measurements of up to 7 gas components. The biogas measurements include O2, H2S, CH4 and CO2 (infrared for CO2/CH4). The emissions measurements include O2, CO, NO, NO2 and CO2. The O2 measurement has a 4-5 year estimated life span. The modern, slim line enclosure features a secure rear-mounted magnant for drop resistant operation. The Optima 7 has a 3.5" TFT display with a bright LED back light.

The OPTIMA 7 Bio Gas Analyzer includes:

  • O2 measurement with range of 0 to 25%
  • CH4 measurement with range of 0 to 100%
  • CO2 measurement with range of 0 to 100%
  • H2S measurement with range of 0 to 2,000 ppm
  • Biogas pressure measurment with range 0 to ±300 mbar
  • Optimized, backlit condensate separator with re‐usable PTFE (star) filter for protection against dust and soiling
  • IRDA interface for high speed infrared thermal printer
  • Mini‐USB interface for cable data transfer to PC
  • SD card reader incl. activating software
  • Internal data storage for up to 16000 measurements
  • Battery and mains operation - high energy Li‐Ion battery, with 8 - 10 hours mains free operation
  • Wall‐plug, universal grid power supply 90‐240Vac / 50‐60Hz for battery charging over the USB port
  • Biogas sampling line Ø3x2mm Viton with 5m length and stainless steel instrument gas inlet port

The OPTIMA 7 Land fill Gas Analyzer includes:

  • Includes all the same features and components as the OPTIMA 7 Bio Gas ANALYZER
  • HC "sniffer" for gas leakage detection with 1.5 meter cable and swan neck
  • Gas Flow Velocity measurement using Pitot tube
  • Special "S" type straight Pitot tube with integrated gas sampling and K-type thermocouple

The OPTIMA 7 Engine Exhaust Gas Analyzer includes:

  • O2 measurement with range of 0 to 25%
  • CO measurement with range of 0 to 4,000 ppm
  • NO measurement with range of 0 to 1,000 ppm
  • NO2 measurement with range of 0 to 200 ppm
  • Biogas pressure measurment with range 0 to ±300 mbar
  • All combustion calculations
  • Automatic measurement including data logging function, user-specific adjustable determination of average value, storing on SD card
  • Gas sampling probe for exhaust gas emission monitoring with 9' Viton hose and 12" probe tube and heat deflector
  • Optimized, backlit condensate separator with re‐usable PTFE (star) filter for protection against dust and soiling
  • IRDA interface for high speed infrared thermal printer
  • Mini‐USB interface for cable data transfer to PC
  • SD card reader incl. activating software
  • Internal data storage for up to 16000 measurements
  • Battery and mains operation - high energy Li‐Ion battery, with 8 - 10 hours mains free operation
  • Wall‐plug, universal grid power supply 90‐240Vac / 50‐60Hz for battery charging over the USB port
  • Biogas sampling line Ø3x2mm Viton with 5m length and stainless steel instrument gas inlet port

Printers

MRU 63677 IR Printer
High speed easy paper loading IR printer
$307.00
MRU 59465 Printer paper rolls
Printer paper rolls (5 rolls)
$16.00

Cases

Carrying cases, spare cases

Accessories

Please consider these optional accessories.

MRU 63218 Shoulder Strap
Shoulder strap for AMPRO 2000 Gas Analyzer
$70.00
MRU 63136 AUX Input
AUX input for additional parameters
$133.00
MRU 64158 Automatic Measurement
Automatic measurement including data storage on SD Card with user definable determination of average value
$236.00
MRU 63086 Gas Detector
Gas detector, HC, requires AUX input 63136
$293.00
MRU 62741 / 62747 Industrial Probe Handle
Industrial Probe handle with sampling line
$265.00
MRU Exchangeable Probe Tubes
High grade steel or Inconel, cone included
$113.00
MRU 65481 Heat Deflector Shield
Heat deflector shield for high temperature radiation site (Ø6" with Ø0.31" hole for probe tube)
$99.00
MRU 63140 Service & Cleaning Set
Service & Cleaning Set
$116.00
MRU 65585 Replaceable Filter Elements
Replaceable filter elements for condensate separator
$15.00
MRU OPTIMA 7 Sensors
OPTIMA 7 Sensors for use at flue gas emission measurements of cogeneration engines
$381.00
MRU 62931 ABS Transport Case
ABS Transport case, with large compartment for accessories, recommended for combined sets
$242.00
MRU 66113 Bluetooth module
Bluetooth module (dual mode) for wireless data transfer to PC and MRU4u App
$205.00
MRU 65730 Gas Flow Velocity
Gas flow velocity using PITOT Tubes, requires Pitot tube
$335.00
MRU 65130 Sampling Hose
Biogas sampling hose, 5 meters with quick connector
$85.00
MRU 65905 Pressure Reducing Box
Pressure reducing box (for high pressure site biogas sampling, e.g. Before CHP engines)
$146.00
MRU 65673 Special "S" Type Straight Pitot Tube
Special "S"-type straight Pitot tube, Ø12 x 250mm, incl. K-type thermocouple for flow velocity (volume) measurement
$392.00
MRU 65832 Special "S" Type Straight Pitot Tube
Special "S" type straight Pitot tube, Ø12 x 250mm, incl. K-type thermocouple and integrated gas sampling line
$460.00
MRU 65670 Stainless Steel Mounting Fitting
Stainless steel mounting fitting Ø12mm-1/2in male, with PTFE fixing ring
$60.00
MRU4u Android App
Remote control of measuring units & visualizing, storing & sharing of measuring data
$0.00
MRU4u Apple App
Remote control of measuring units & visualizing, storing & sharing of measuring data
$0.00
