Panametrics XGS868i Steam Ultrasonic Flow Meter
DigitalFlow ultrasonic transmitter designed to measure the mass flow rate of saturated or superheated steam.
Overview
Features
- Non-obstructive flow measurement
- Wide rangeability with 1500:1 turndown ratio
- ±0.2% to 0.5% of reading repeatability
- Accuracy depends on pipe size and single vs dual path
- ±1% to 2% of reading typical
- ±0.5% may be achievable with process calibration
- -40 to 140°F (-40 to 60°C) operating temperature
- No pressure drop & drift-free operation
- No moving parts or parts that foul or collect debris
- Type 7/Type 4X explosion proof and weatherproof
- Div. 1,Class 1, Group B, C & D
- ATEX: II 2 G Ex d IIC T6 IP66
- IECEx: Exd IIC T6 Gb IP66
Description

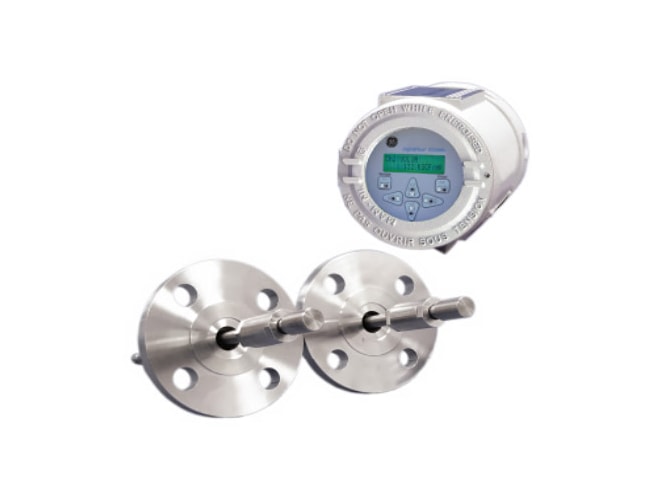

The Panametrics XGS868i ultrasonic flow meter measures flow velocity rate and uses input temperature and pressure to calculate the steam mass flow. The mass flow rate can be displayed locally or transmitted to a remote system via an analog or digital communications link.
In addition to the standard single-channel model, an optional two-channel model provides enhanced accuracy when measuring two paths on a single pipe. It can also be used to measure a single path on two different pipes.
