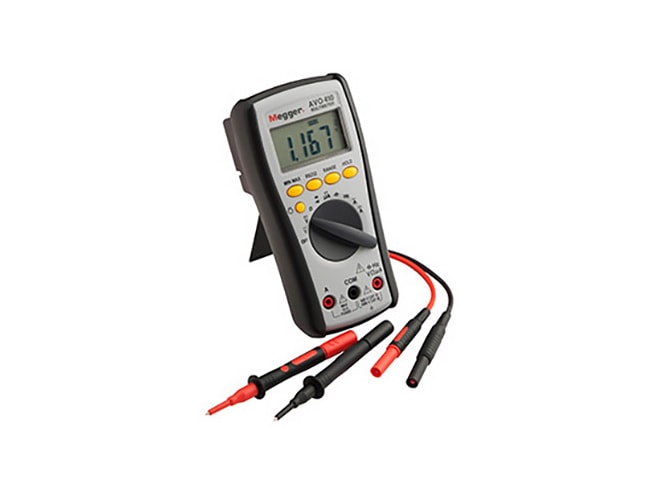

Megger AVO410 Digital Multimeter

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 1000VDC & 750VAC ranges
  • True RMS reading on AC mode
  • Current measurements up to 10A (AC/DC)
  • Up to 60MΩ resistance measurement
  • Up to 6.00mF capacitance measurement
  • Up to 60MHz frequency measurement
  • MIN MAX function with data hold
  • IEC61010 CAT IV 600V safety rating

What's in the Box

  • Test leads and probes

The Megger AVO410 digital multimeter is designed for the contracting electrician with AC and DC voltage and current measurements as well as resistance, frequency and capacitance ranges. It's safety rated for industrial applications and features a slim, compact case that is rubberized for extra protection in extreme conditions. The style of the case and positioning of the function switch and buttons allow the unit can sit comfortably in your palm for single handed use.

All functions default to auto-ranging or you can manually choose from a selection of set ranges. The AVO410 has optically isolated RS232 interface that allows the user to connect to a PC via a USB port for data acquisition and analysis (optional software is required for this function).

The continuity function features a buzzer and provides the user both optical and audio indication of identifying and confirming continuity between two points. This function also allows forward and reverse bias testing of diode and semiconductor junctions.
