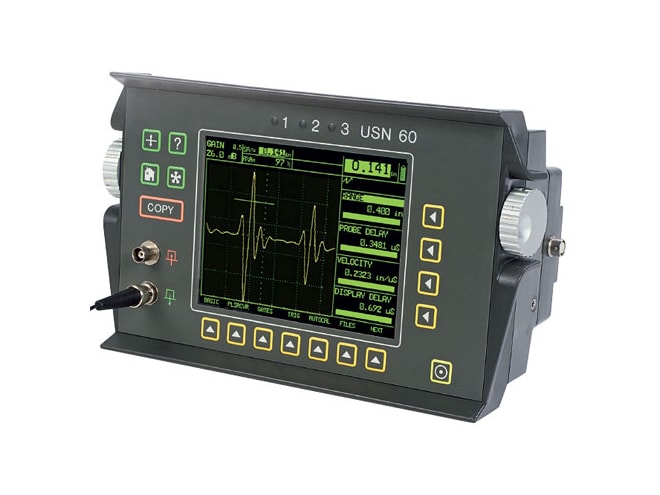

GE Inspection Technologies USN 60 Flaw Detector
Starting at $11,018.00

Not in stock. Call for availability [?]

Need Help? Call a Flow Engineer 1-800-884-4967

We're open 8:00am to 5:30pm ET

Features

  • 0.040 to 1100in (1mm to 28m) range in steel
    • Lite version (USN 60L) limits max to 480in (12m)
  • -4 to 130°F (-20 to 55°C) operating temperatures
  • 4 selectable damping settings (50, 75, 150, 500 ohms)
  • 0 to 110 dB adjustable gain
  • 0.25 to 25 MHz frequency range
  • 11 hours of battery life
  • IP54 classified dust & dripping water proof per IEC 529
  • EMC/EMI compliance
    • EN 55011:2007, EN 61000-6-2:2005

The GE Inspection Technologies USN 60 flaw detector is designed for outdoor use with two independent gates to monitor amplitude and soundpath distance for both flaw detection and thickness measurement applications. It features pulse echo, dual, and thru-transmission test modes as well as measurement modes for zero-to-first and multi-echo with selectable flank or peak detection. This flaw detector also calculates weld ratings according to AWS specification D1.1 (formula D=A-B-C).

The Square Wave Pulser mode satisfies a wide range of tough-to-penetrate applications, including composite materials. In this mode the voltage is scrollable in 10V increments from 50 to 450V. Pulse width can be adjusted in 10ns increments from 10 to 1000ns.

Calibration

GE Inspection Technologies USN 60 Cal Cert
Certificate of calibration according to EN 12668-1
$1,207.00

Upgrades

GE Inspection Technologies USN 60 DAC & TCG Option
Multi-curve distance amplitude curve & time corrected gain for echo amplitude adjustment and evaluation, 40dB dynamic range
$1,292.00
GE Inspection Technologies USN 60 Interface Gate Option
For automatic start of the display, Gate A, Gate B, and/or DAC/TCG for immersion testing applications
$1,292.00
GE Inspection Technologies USN 60 BEA Option
Backwall echo attenuator allows independent gain control of the region under Gate B for backwall echo monitoring
$1,652.00
GE Inspection Technologies USN 60 DGS Option
Distance gain size displays a curve for a particular equivalent reflector size as a function of the distance from the probe to the reflector
$1,292.00
GE Inspection Technologies USN 60 RF Option
Outputs the raw RF waveform via a standard Lemo #00 connector for further analysis
$796.00
GE Inspection Technologies USN 60 Hi-Speed Option
Outputs amplitude or thickness values 20 times faster than RS-232 port
$1,362.00

Software

GE Inspection Technologies UltraDoc Software
Program on CD for bi-directional communication with a PC for easy storage of data sets with A-scan and documentation of test results
$980.00

Cases

GE Inspection Technologies USN 60 Soft Case
Includes sun shield, shoulder strap & attachment hardware
$281.00
GE Inspection Technologies USN 60 Pouch
Soft, detachable accessories pouch for use with soft carry case
$76.00
GE Inspection Technologies 021-026-315 Transport Case
Rugged and lockable carrying case for protection of instrument (USN 60, USM Go+, or DMS Go+) and accessories
$470.00

Accessories

Please consider these optional accessories.

GE Inspection Technologies USN Replacement Battery
Kit includes Lithium battery and charger for USN 58 or USN 60 flaw detectors
$611.00
In Stock
GE Inspection Technologies USN 60 Handle
Rubber handle kit, includes four attachment screws
$130.00
GE Inspection Technologies PCCBL-841 Serial PC Cable
Interface cable for connecting your data logging instrument to a computer via 9-pin serial port
$191.00
GE Inspection Technologies USB to Lemo PC Cable Kit
For connecting USN 58 or USN 60 flaw detectors to a computer
$238.00
GE Inspection Technologies 022-507-398 I/O Cable
Terminated at instrument end only with DB-15 connector, for real-time input and output
$253.00
GE Inspection Technologies 022-507-464 Master/Slave Cable
Interconnect cable with DB-15 to DB-15 connectors
$184.00
GE Inspection Technologies USN 60 Screen Overlays
Package of 10 screen protectors, field Replaceable
$25.00
GE Inspection Technologies USN 60 Hardware
Replacement screws and washers for attaching to the nylon case
$73.00
