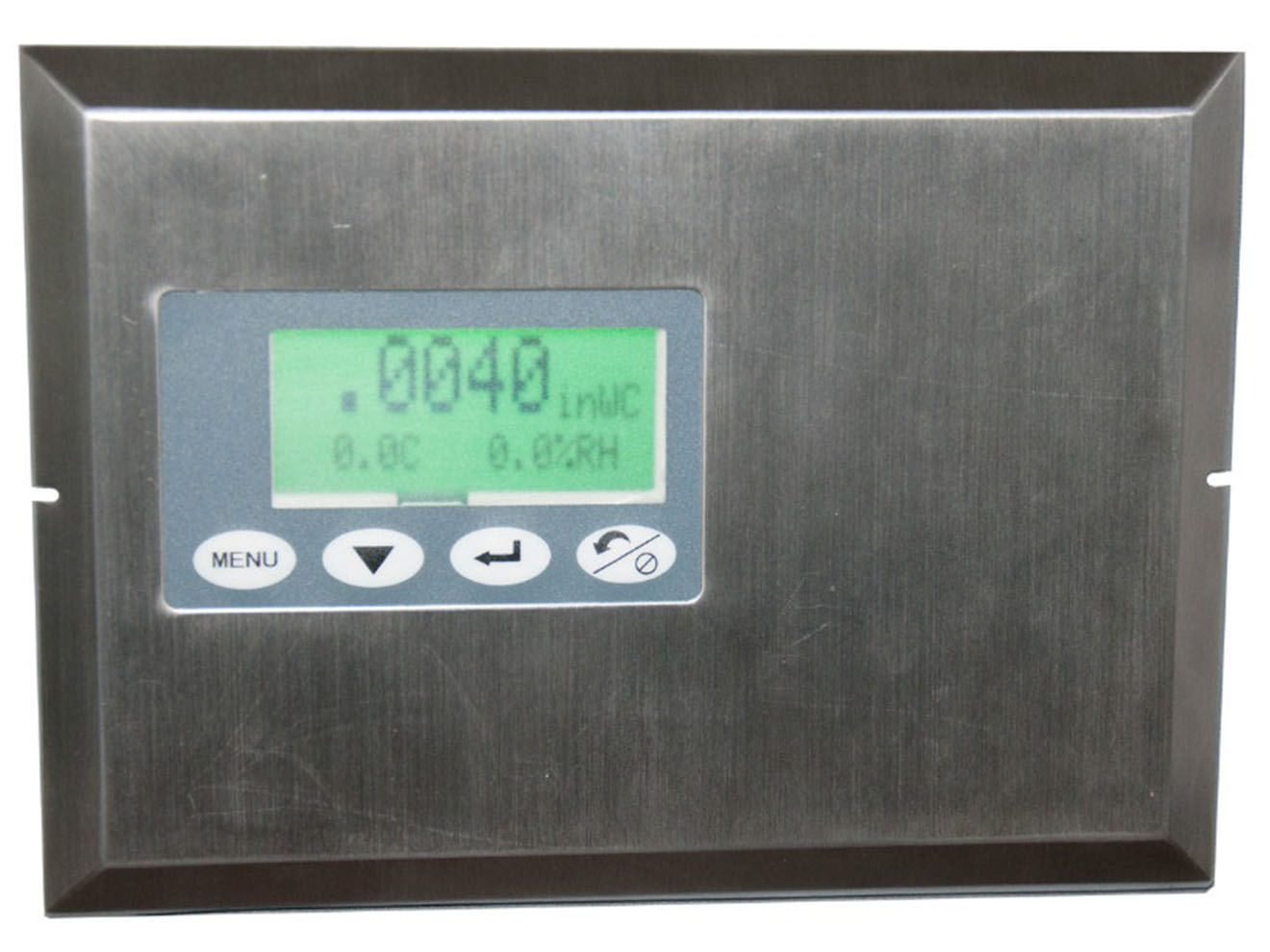

Setra SRIMV Velocity Sensor
Monitor velocity with the option to measure and display flow, differential pressure, temperature and humidity
Need Help? Call a Calibration Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Velocity ranges up to 8000ft/min or 40m/s
- Analog Outputs 4-20 mA, 0-5 and 0-10 VDC
- Field selectable
- 3-Color LCD Display
- Configurable Audible & Visual Alarms
- Digital input provided to show door status
- CE & RoHS certifications
The Setra SRIMV velocity sensor is a multi-function non-BACnet device designed to monitor velocity while also giving the user the option to measure and display flow, differential pressure, temperature and humidity. The SRIMV offers three velocity ranges as well as three pressure ranges, giving the user the option to choose the appropriate range for their application. It has a 3-color back-lit display for easy menu navigation and audible/visual alarm capability for velocity, flow, pressure, temperature, humidity and door input.
The SRIMV automatically calculates the velocity and volumetric flow rates based on differential pressure, eliminating the need for a manual square root calculation. This requires the use of a single point Pitot tube or averaging probe. Air density correction can be set as a STD condition or use as a external temperature sensor input. It also allows the end user to remove the sensor without detaching any wiring or plumbing, attach to the Setra calibration fixture and complete the calibration in minutes.
This product can be used in the following applications:
