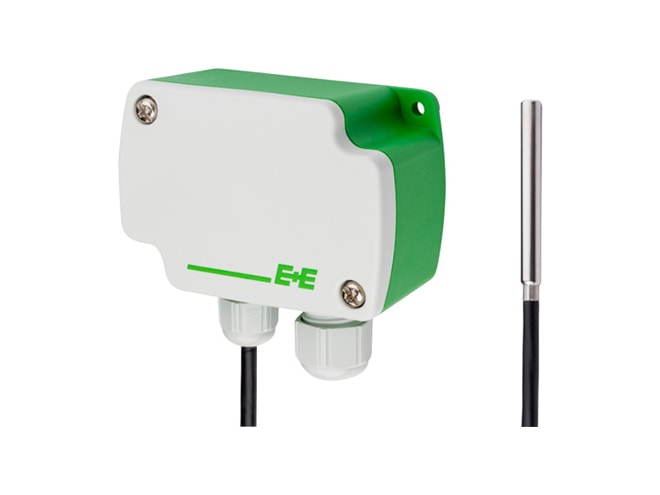

E+E EE471 Temperature Sensor
Starting at $34.01

Usually ships in 4-6 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Temperature sensor with remote probe
  • Measuring range:
    • Passive output: -22 to 221°F (-30 to 105°C)
    • Remote probe: -22 to 221°F (-30 to 105°C)
    • Enclosure: -22 to 158°F (-30 to 70°C)
  • Two-wire connection
  • Accuracy: ±0.54°F (±0.3°C)
  • IP65 / NEMA 4 (enclosure and probe) protection class
  • 0 to 10V or 4-20 mA output
  • External mounting holes
  • Bayonet screws

The E+E EE471 Temperature Sensors are used for temperature measurements in applications with space restrictions or where the electronics must be protected against high temperature or strong vibrations.In addition to active outputs 0 to 10 V or 4-20 mA various types of sensing elements such as Pt1000, NTC10k or Ni1000 are available for passive temperature measurement. Due to an innovative cable outlet and housing concept a high protection class is provided. Product-specific information for the remote probe is printed all along the cable. The optional adapter EE-PCA and the free configuration software EE-PCS facilitate the adjustment and setup of the active temperature sensors.

Applications

This product can be used in the following applications:
